Actisense Panel Mount Wired Connector 5-Pin

Allow NMEA 2000 installations through water tight bulkheads or
panels.

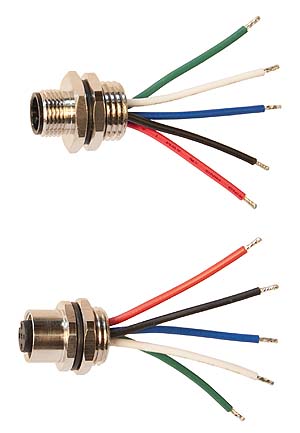

This series of Actisense Panel Mount Wired Connector
5-Pin consists of rear panel mount wired connectors
available from Actisense that allow NMEA 2000 installations through
water tight bulkheads (or panels) to be achieved. Waterproof seals
ensure the integrity of the NMEA 2000 connection and the
bulkhead/panel.

The Actisense Panel Mount Wired Connector 5-Pin
Female can easily replace any of the existing ‘drop’
glands on the Actisense QNB-1 to create a quick pluggable NMEA 2000
connection option.

Actisense Panel Mount Wired Connector 5-Pin
Specifications:

Parameter	Description
Electrical
Rated Current	4 A
Rated Voltage	60 V (AC/DC)
Mechanical
Contacts	Brass, gold plated
Contact Carrier	Nylon and GF
Contact Polarisation	Standard M12 – ‘A’ – Polarisation
Mating Thread	M12
Female O-Ring Seal	Rubber Green
Housing	Brass, nickel plated
Mounting Thread	PG9
Mounting Nut	Brass, nickel plated – PG9
Mounting Hole Dimensions	15.3mm (diameter)
Wires	18 AWG (stripped and tinned)
Wire Jacket	PVC
Weight	20g
Approvals and Certifications
Protection	IP67 (when mated)
Operating Temperature	– 20 degreesC to + 90 degreesC
Connector Specification	Meets IEC61076-2-101
NMEA 2000 Pending
RoHs Compliant
UL Certified (E321413)
