Actisense OPTO-4 NMEA 0183

Isolate an RS232 (PC) port to protect against ground
loops.

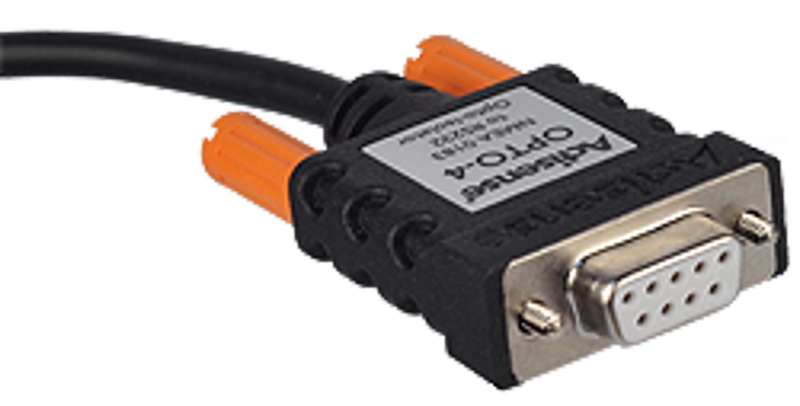

The Actisense PC Opto-Isolator Cable (OPTO-4)
provides an easy way to link an NMEA® 0183 device to an RS232 (PC)
serial port. Providing the necessary isolation to allow a PC (or
any other device with a standard full RS232 9-pin port) to meet the
latest NMEA 0183 input specification.

Actisense OPTO-4 NMEA 0183 Features:

• NMEA 0183 & RS232 compliant
• Full duplex (two-way) communication
• All baud rates up to 115200 Baud
• Overmoulded case with a narrow profi le for installing in small
  spaces
• Transient protection on the PC output line
• Opto-isolation providing 2000 volt protection on the PC input
  line
• Reverse voltage protection on the PC input line
• Current limited to protect against cable faults
• Port-powered; takes power from the PC port
• Fully shielded for superior noise rejection

Actisense OPTO-4 NMEA 0183 Specifications:

Parameter	Description
Electrical

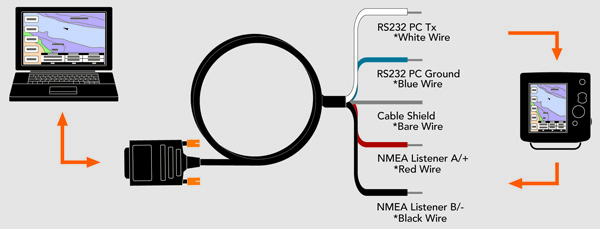

NMEA Listener/Input Isolation	2kV Opto-Isolation between Red/Black NMEA pair and all other connections
NMEA Listener/Input Voltage	+/-15V Continuous Maximum +/-35V Max <1 Second
NMEA Listener/Input Signal Thresholds	Logic ‘0’ +2V to +15V Logic ‘1’ -15V to 0V
NMEA Talker/Output Voltage and Current	Dependant on Host RS232 Interface. Typically +/-5V to +/-15V @10mA Max
RS232 Voltage on Host	+/-7V to +/-15V
RS232 Port Total Current  Consumption	2mA to 5mA depending on RS232 Voltage
Speed/Baud Rate	4800 to 115200 Baud
Mechanical
Housing Material	PVC Black
Thumb Screw Material	PVC Orange
Screw	Steel, Nickle Plated, M2.8 Thread
DB9 Connector	9 Pin Female
Cable Length	1.5m

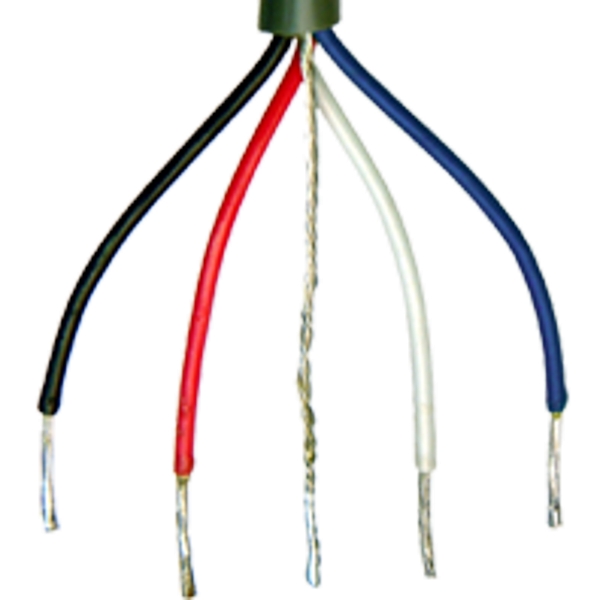

Cable Wire	22AWG (17/34AWG) Tinned Stranded Copper
Cable Jacket	PVC
Shield	Internal Copper Foil Shield
Cable Outer Diameter	5.5mm
Approvals and Certifications
Operating Temperature	-20 degreesC to +70 degreesC
Electrical Specification	Meets IEC 61162-2
Weight	100g
Guarantee	3 Years
UL Certification	Cable E137250
RoHs Compliant
