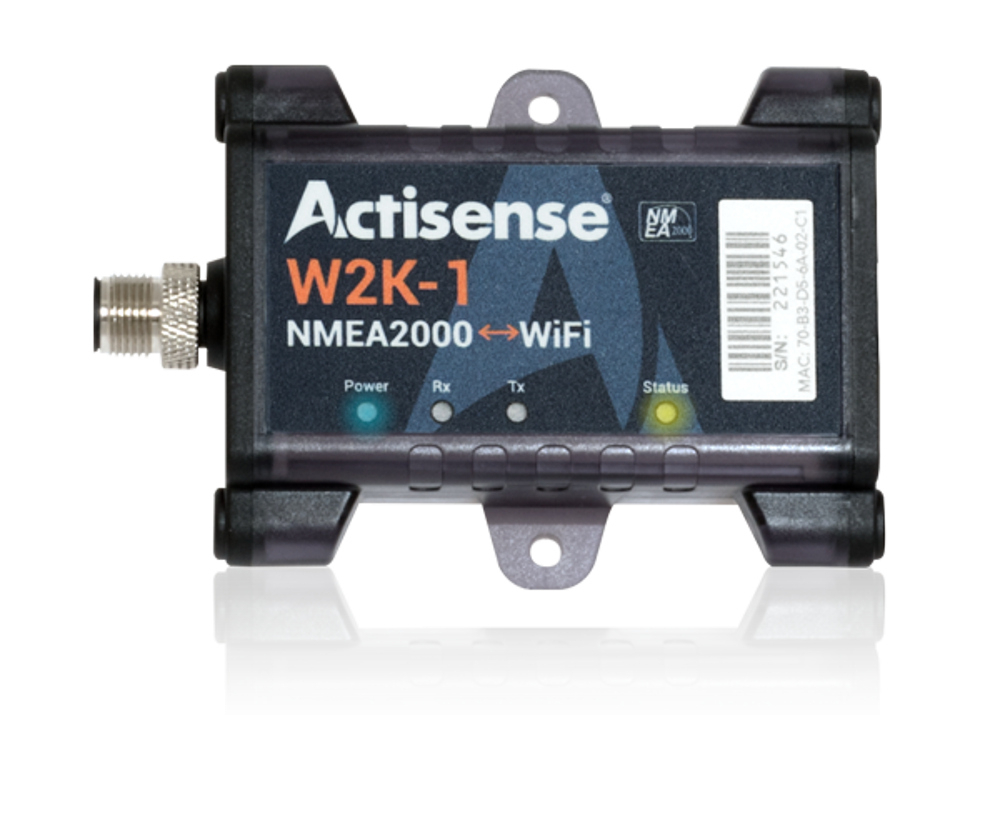

Actisense NMEA 2000 To Wi-Fi Gateway With Voyage Data Recorder

Actisense NMEA 2000 to WiFi Gateway with Voyage Data Recorder.

It transfers data from an NMEA 2000 backbone to any device (e.g. laptop, tablet or smartphone) connected to it via Wi-Fi.

It has built-in conversion of NMEA 2000 messages into NMEA 0183 sentences thus allowing a wide variety of vessel data (e.g. position, speed, course, wind speed, depth, engine data, AIS messages etc.) to be shared with NMEA 0183 compatible software applications running on connected devices.

All the data received (or a selected subset) can be logged to its internal micro SD card for later downloading to use for analysing the voyage. This is very useful for analysing race data, generating logbooks, diagnosing problems or even sharing your voyage details. Approximately 16 days of data can be stored on the pre-installed industrial grade micro SD card, which can be upgraded should the user require more storage.

The W2K-1 has the legendary Actisense Reliability Built In along with useful diagnostic LEDs, internal antenna, enhanced password security, full certification and all packaged in an extremely rugged IP67 case.

Specifications:

Power Supply
Supply Voltage (NMEA 2000 Port)	9 to 36V DC
Supply Current (NMEA 2000 Port)	70mA (avg.) @ 12V DC
Load Equivalent Number (LEN)	2
Supply protection	Continuous reverse polarity protection and transient overvoltage protection to 40V
Wi-Fi Radio
Compatibility	IEEE 802.11 b/g/n
Speed	802.11n up to 150Mbps
Frequency Band	2.4GHz approx. 2.5GHz
Max Output power	20 dBm
Antenna	Integrated internal antenna
Range (Open space)	30 meters
Security	WPA / WPA2
Configuration
IP support	Supports TCP and UDP broadcast
Data servers	Three separate data servers
Data protocols	NMEA 0183, Raw CAN, BST-N2K
Security	SSID and Password configurable (Unique defaults per device)
Diagnostics
Power LED	Blue
NMEA 2000 Tx LED	Orange
NMEA 2000 Rx LED	Green
Status LED	Yellow
micro SD card	8GB Industrial Grade, FAT32
Mechanical
Housing Material (body)	Polycarbonate
Housing Material (endcaps)	PBT
NMEA 2000 Connector	M12 Male (A polarised) connector moulded into case
NMEA 2000 Connector Material	Nickel plated brass
Weight	80g
Dimensions	106mm (L) x 73mm (W) x 24mm (H)
Environmental
Environmental Protection	IP67
Operating Temperature	-20 degreesC to +55 degreesC
Storage Temperature	-30 degreesC to +70 degreesC
Recommended Humidity	0 – 93% RH
Approvals and Certifications
NMEA 2000 Certified
RoHS and REACH compliant
RF Module certification	FCC / CE-RED / IC / TELEC / KCC / SRRC / NCC
EMC	IEC 60945 (sections 9 and 10), EN 301489-1, EN301489-17
Radio	EN 300 328
Guarantee	3 years
