Actisense NMEA 2000 PC Gateway PC Interface Specialist Version

Interface your PC to the NMEA 2000 bus.

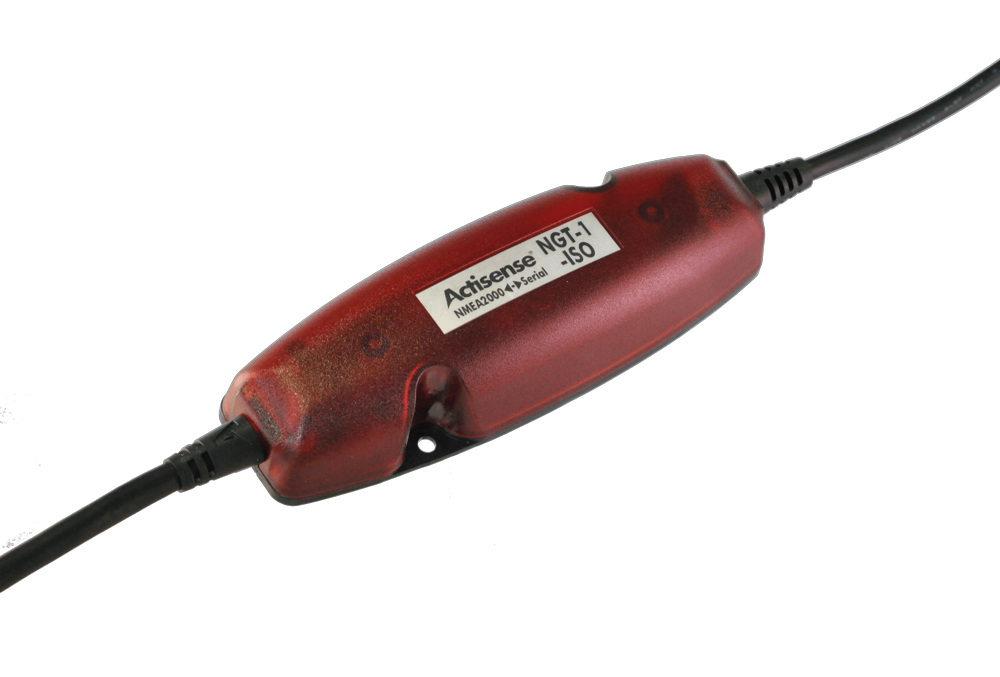

The NGT-1 is an intelligent NMEA 2000 gateway able to precisely Transfer messages to and from the NMEA 2000 bus. It is compatible with a wide range of Chartplotters, display and configuration applications available for PCs.

The diagnostic NMEA Reader software allows viewing of NMEA 2000 messages with configuration options, enabling some set-up of Actisense products on the NMEA 2000 bus.

Features:

• Vital NMEA 2000 diagnostic tool
• USB version is fully isolated to prevent dangerous ground loops
• ISO version has OPTO-isolated input and ISO-Drive output for safely interfacing with RS232 or RS422
• Up to 230,400 baud data transfer rate
• Integrated 1.5m drop cable
• Diagnostic receive LEDs

Specifications:

• Compatibility: Fully RS232 & RS422 compatible.
• Galvanic Isolation: 2500V input to ground, 1500V output to ground using ISO-Drive
• Speed/Baud Rate: 4800 to 115200 Baud
• Output Voltage Drive: >= 2.1V (differential) into 100?
• Output Current Drive: 20mA max.
• Output Protection: Short circuit and ESD
• Input Voltage Tolerance: -15V to +15V continuous -35V to +35V short term (
• Input Protection: Current limited and overdrive protection to 40VDC
• Connectivity: 5mm stripped and tinned wire
• Cable Length: 1.5m
