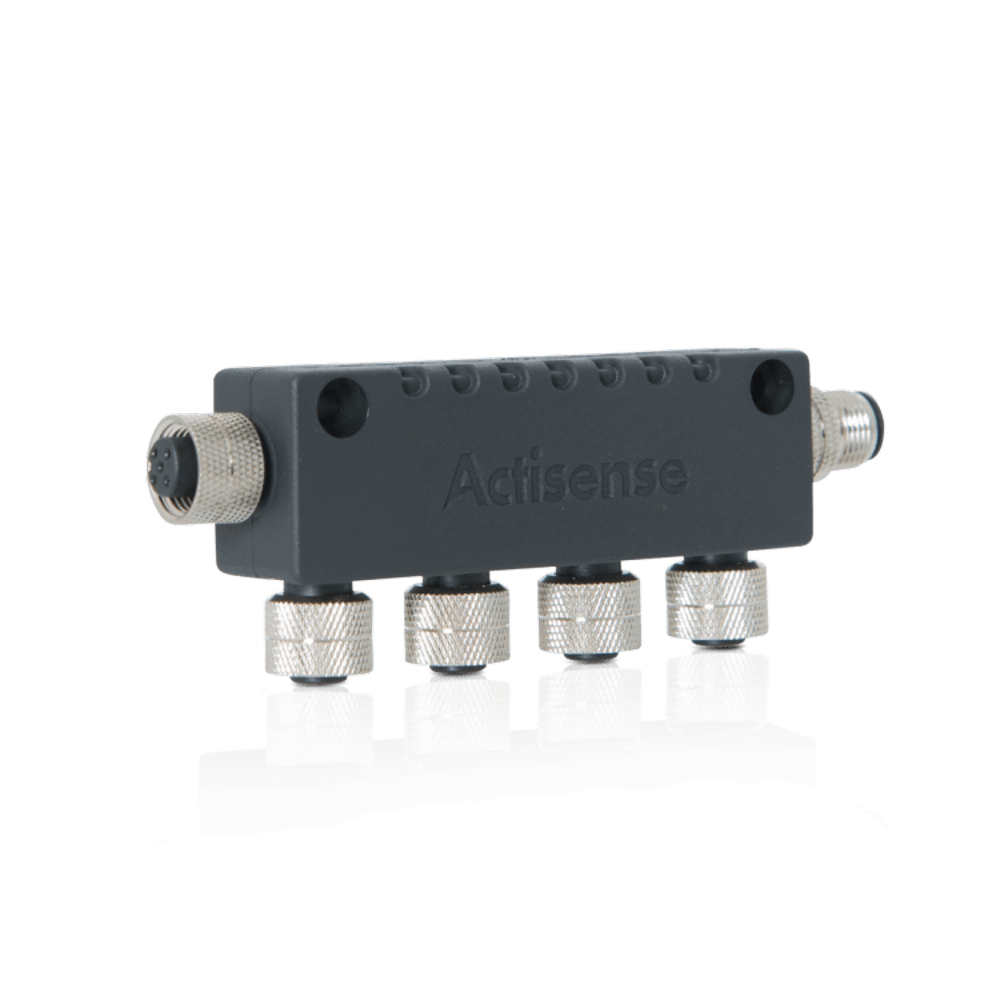

Actisense NMEA 2000 Connector Micro 4-Way T Connector

The 4 Way T-Piece from Actisense saves you time, space and money on your NMEA 2000 installation.

The Actisense 4 Way T-Piece is for use where multiple drops or ports’ are required from the NMEA 2000 backbone. It’s as quick and easy to install as a single T-Piece, uses less space than two individual T-pieces and costs less than four.

The Actisense range of NMEA 2000 connectors and cables has been designed using Actisense’s specialist interconnect and NMEA knowledge.

Specifications:

Electrical

• Rated Voltage: 60 V (AC/DC)

Mechanical

• Male Contact: Brass, gold plated
• Female Contact: Phosphor bronze, gold plated
• Contact Carrier: PBT, black
• Contact Polarisation: Standard M12 -A- polarisation
• Mating Thread: M12
• Screw Cap: Brass, nickel plated
• O-Ring Seal: Rubber
• Housing: TPU, flame retardant to UL94V-0, Halogen Free
• Internal Housing Shield: Copper Foil
• Weight: 105g

Approvals and Certifications

• NMEA 2000 Approved
• RoHS Compliant
• ProtectionIP67 (when mated)
• Operating Temperature-20 degreesC to +70 degreesC
• Storage Temperature-40 degreesC to +85 degreesC
