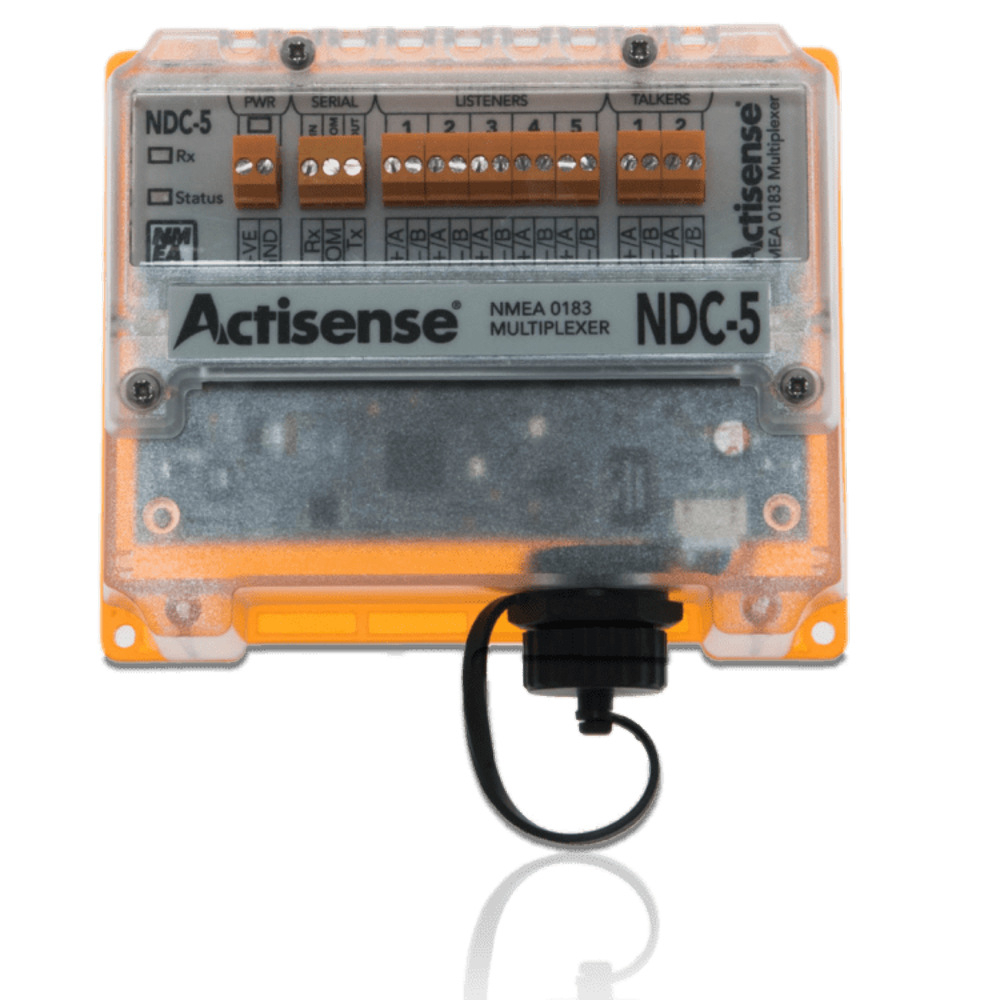

Actisense NMEA 0183 Multiplexer

The configuration tool is accessible via any popular web browser using the Ethernet port, which supports both direct and network connections. Industry leading isolation is provided on all inputs and outputs as standard so that connected devices safely avoid hazardous ground loops, the number one cause of product failure in NMEA 0183 networks. This makes the NDC-5 robust enough to handle any NMEA 0183 installation.

Pluggable connectors allow new devices to be easily installed without the need to remove the NDC-5 from its mounted location. An optional professional DIN rail mounting mechanism keeps the NDC-5 secure in high vibration environments. Integrated LEDs provide feedback on basic status while advanced statistics are available via a Web Browser.

Features:

• 5 OPTO-Isolated NMEA 0183 inputs
• 2 ISO-Drive NMEA 0183 outputs
• Dedicated bi-directional Serial port (fully isolated utiising ISO-Drive technology)
• Serial port can be used as additional input / output
• Ethernet port supports direct and network connection
• Configurable input and output baud rates
• Allows Data combining and rate conversion
• 2 independent Autoswitch virtual inputs with priority
• Isolation to battery supply
• Diagnostic LED’s
• IP65 rated Polycarbonate housing
• Optional DIN rail mount

Benefits:

Features:

• Quick and easy to install
• Configuration using standard web browser, no PC operating system compatibility issues
• Advanced features solve NMEA 0183 data routing problems
• Fully isolated with ISO-Drive technology for peace of mind
• Easy firmware updates make the device future-proof

Specifications:

Power Supply
Input supply voltage	9 to 35 V DC
Input supply current	110mA max @ 12V DC (all outputs @ full drive into 100 ohm loads)
Input protection	Continuous reverse polarity, transient overvoltage and ESD protection
Power indicator	LED, Blue – indicates unit is functioning correctly
NMEA 0183 Port – Listener and Talker
Number of Listener / input ports	5 isolated NMEA 0183 Listeners
Number of Talker / output ports	2 isolated NMEA 0183 Talkers
Compatibility	Fully NMEA 0183, RS422 and RS232 compatible. RS485 Listener compatible
Electrical isolation	2500 V input to ground, 1500 V output to ground using ISO-Drive
Speed / baud rate	In1 to In4: up to 38400 bps In5: 4800 bps Out1: up to 115200 bps Out2: up to 38400 bps
Talker output voltage drive	>= 2.1V (differential) into 100 ohm
Talker output current drive	20 mA maximum per output
Talker output protection	Short circuit and ESD
Listener input voltage tolerance	-15 V to +15 V continuous, -35 V to +35 V short term (
Listener input protection	Current limited, overdrive protection to 40 VDC and ESD protection
Listener data indicator	LED, Green (Flashes to indicate valid input)
Status indicator	LED, Green / Yellow / Red to indicate status (see user manual)
Serial Port
Number of input ports	1 isolated input
Number of output ports	1 isolated output
Compatibility	RS422 and RS232 compatible. RS485 Listener compatible
Electrical isolation	2500 V input to ground 1500 V output to ground using ISO-Drive
Speed / baud rate	115200 bps
Output voltage drive	>= 2.1V (differential) into 100 ohm
Output current drive	20 mA max.
Output protection	Short circuit and ESD
Input voltage tolerance	-15 V to +15 V continuous, -35 V to +35 V short term (
Input protection	Current limited, overdrive protection to 40 VDC and ESD protection
Ethernet Port
Host interface	10/100BaseT, automatic polarity detection
Supported protocols	TCP/IP for configuration and firmware updating TCP/IP and UDP for NMEA 0183 comms
Connector	RJ45
Electrical isolation	2kV
Indicators	Green – Link, Yellow – 100 Mbps
Mode Inputs
Input voltage range	0 to 35V DC
Protection	Transient overvoltage and ESD protection
Alarm Output
Contacts	Normally open and normally closed
Electrical isolation	1000V between power supply and contacts
Alarm indicator	LED, red indicates a valid alarm condition
Mechanical
Housing material	Polycarbonate
Protective Lid Material	Polycarbonate
Sealing Material	Expanded silicone foam gasket, closed cell polyurethane splash guard and ePTFE waterproof vent
Dimensions	127mm (L) x 106mm (W) x 48mm (H)
Weight	230g including screw terminals and RJ45 cap
Mounting	4 x 3.5mm lugs to allow panel mount with self tapping screws (included), optional DIN rail mount available on request.
Compass safe distance	TBD
Wiring terminals	Pluggable 2/3 way screw terminal, 3.5mm pitch, 14 to 30 AWG
Approvals and Certifications
EMC	IEC 60945 (sections 9 and 10)
CE	2014/30/EU
Environmental protection	IP65
Operating temperature	-15 degreesC to +55 degreesC
Storage temperature	-40 degreesC to +85 degreesC
Relative Humidity (RH)	0 – 80% RH
Guarantee	3 years

NDC-4 Vs NDC-5

Feature                                                                                                 NDC-4                                                   NDC-5

Inputs (inc. serial port)                                                                 5                                                              6

Outputs (inc. serial port)                                                              2                                                              3

Dedicated serial port                                                                     –                                                             Yes

Ethernet port                                                                                   –                                                             Yes

Config tool                                                                                                  Windows only                                 Any popular web browser on any OS

Basic data filtering                                                                          Yes                                                         Yes

Advanced data routing                                                                   –                                                             Yes

Safe USB connection while powered via a battery                   –                                                             Yes

Pluggable connectors (quicker and easier installation)           –                                                             Yes

Weather sealed                                                                               IP66                                                       IP66
