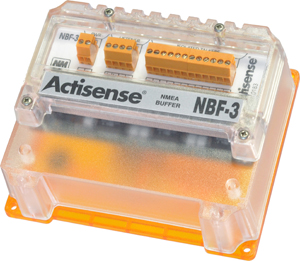

Actisense NBF-3 NMEA Buffer

Original price was: $575.00.Current price is: $93.99.

SKU: 45914 Categories: Data Converters, Marine Electronics, Networking Tag: Actisense

Top Quality Products
Safe Payments, the Smart Choice
The home of quality products.
Online assistance, always just a message away.

Description
Reviews (0)

Safely drive up to six NMEA Listeners, with power distribution
for the connected Talker.

The Actisense NBF-3 NMEA Buffer isolates and
buffers NMEA 0183 data, with the power to drive multiple devices.
The NBF-3 can distribute up to six identical, amplified streams of
data from one source. The NMEA signals are buffered to ensure that
each Listener receives the data at the required voltage levels,
providing consistent data quality.

The isolation on the input and each of the outputs ensures the
protection of the source Talker device and all the Listening
devices. The safe connections mean that a non-isolated device could
be connected and the NBF-3 would prevent it from causing any damage
to the other equipment in the system. Ground loops often occur when
devices are not isolated and can cause irreparable damage.
Actisense ISO-Drive technology on the outputs along with the
galvanic opto-isolation on the input means you can connect the
NBF-3 with complete peace of mind.

The NBF-3 NMEA Buffer has the addition of power
distribution for the NMEA Talker. By having power and data from the
same source, cabling requirements are reduced and installation is
made simple.

Actisense NBF-3 NMEA Buffer Features:

Galvanic opto-isolation on the NMEA 0183 input
ISO-Drive™ NMEA 0183 outputs provide galvanic isolation to
prevent ground loops
Compatible with all NMEA 0183 versions without requiring
configuration
NMEA 0183 outputs compatible with RS422, RS232 and RS485 type
Listeners
NMEA 0183 input compatible with RS422 and RS232 type
Talkers

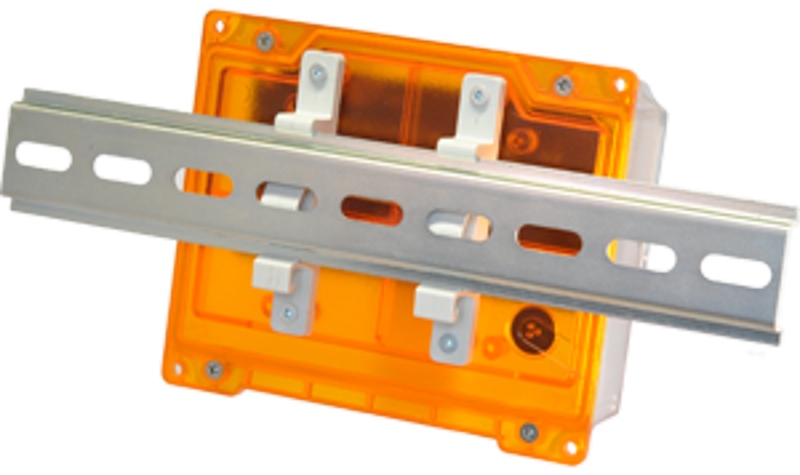

DIN Rail mountable
Pluggable screw terminals for quick and easy installation and
diagnostics
Power and input indicator LEDs
Works automatically up to 115200 Baud
Amplification of weak input signals
Power feed for single cable installation to the NMEA
Talker

Actisense NBF-3 NMEA Buffer Specifications:

Power Supply
Input Supply Voltage	10 to 35V DC
Input Supply Current (NBF-3 only)	100mA max @ 12V DC (all outputs @ full drive into 100Ohm loads)
Input Supply Connector	Pluggable 2 way screw terminal, 3.5mm pitch
Input Protection (NBF-3)	Continuous reverse polarity and ESD protection
Power Indicator	LED, blue (lit constantly indicates correct operation when input supply is connected)
Listener Power Output Voltage	10 to 35V DC derived directly from the input supply voltage
Listener Power Output Current	500mA max @ <=30 degreesC (See Note) (PTC self-resettable fuse)
Listener Power Output Connector	Pluggable 2 way screw terminal, 3.5mm pitch
NMEA 0183 Port – Listener and Talker
Number of Listener/Input Ports	One isolated NMEA 0183 Listener
Number of Talker/Output Ports	Six isolated NMEA 0183 Talkers
Compatibility	Fully NMEA 0183, RS422 and RS232 compatible. RS485 Listener compatible
Galvanic Isolation	2500V input to ground 1500V output to ground using ISO-Drive
Speed/Baud Rate	4800 to 115200 bps
Talker Output Voltage Drive	>=2.1V (differential) into 100Ohm
Talker Output Current Drive	20mA max
Talker Output Protection	Short circuit and ESD
Listener Input Voltage Tolerance	-15V to +15V continuous, -35V to +35V short term (<1 second)
Listener Input Protection	Current limited, overdrive protection to 40V DC and ESD protection
Listener Data Indicator	LED, green (flashes at data rate)
Connectors	Pluggable 2-way screw terminals, 3.5mm pitch
Mechanical
Housing Material	Polycarbonate
Protective Lid Material	Polycarbonate
Sealing Materials	Expanded silicone foam gasket closed cell polyurethane splash guard and ePTFE waterproof vent
Dimensions	127mm (L) x 106mm (W) x 48mm (H)
Weight	210g
Mounting	4 x 3.5mm lugs to allow panel mount with self tapping screws (included), optional DIN rail mount available on request.
Approvals and Certifications
EMC	IEC60945-9 (sections 9 and10)
Environmental Protection	IP66
Operating Temperature	-20 degreesC to +70 degreesC
Storage Temperature	-40 degreesC to +85 degreesC
Relative Humidity	0 to 80% RH
Guarantee	3 Years
