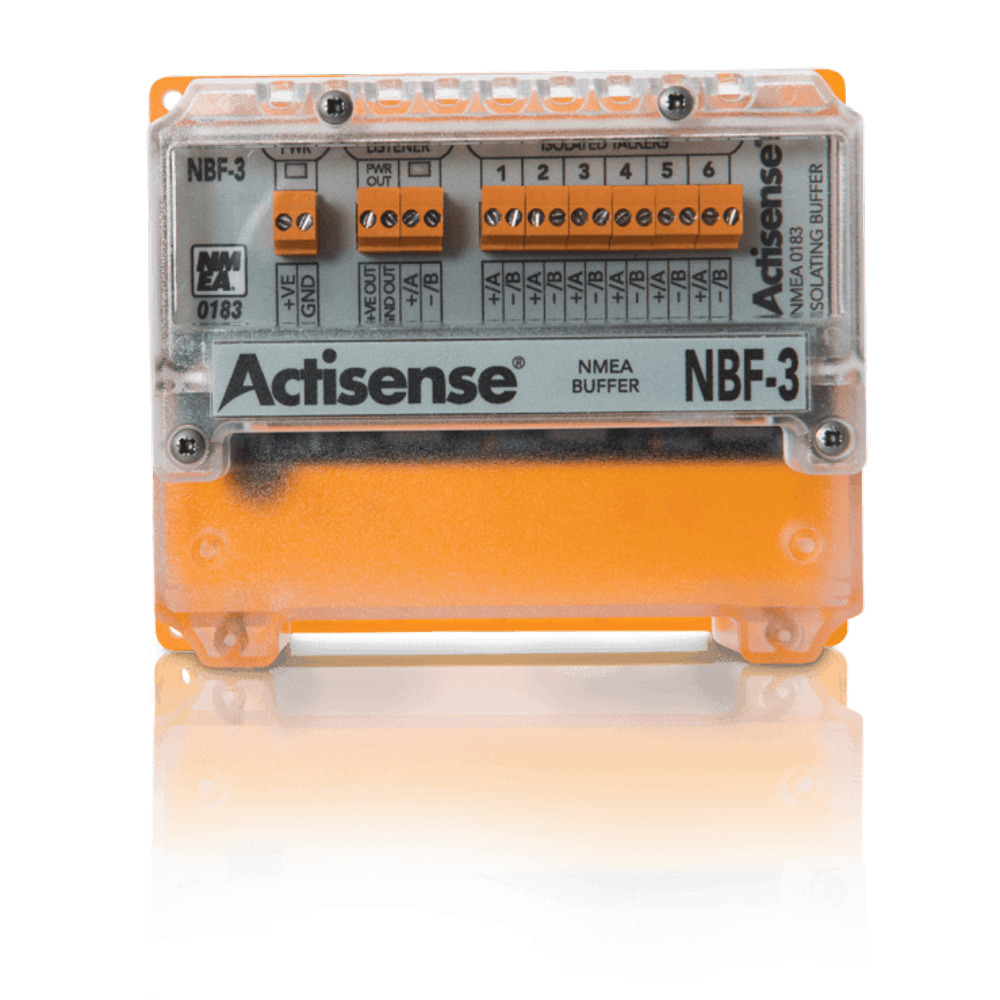

Actisense NBF-3-BAS NMEA 0183 Buffer

Original price was: $531.00.Current price is: $93.99.

SKU: 162985 Categories: Data Converters, Marine Electronics, Networking Tag: Actisense

Top Quality Products
Safe Payments, the Smart Choice
The home of quality products.
Online assistance, always just a message away.

Description
Reviews (0)

The NBF-3 NMEA Buffer isolates and buffers NMEA 0183 data, with the power to drive multiple devices. Able to distribute up to six identical, amplified streams of data from one source. The NMEA signals are buffered to ensure that each Listener receives the data at the required voltage levels, providing consistent data quality.

Features:

One OPTO-isolated input Six ISO-DriveTM outputs
Compatible with RS422, RS232 and RS485 connections
Pluggable screw terminals
Power and input indicator LEDs
Power feed (500 mA) for single cable installations to the NMEA Talker
Optional DIN rail mount Up to 115200 baud
Outputs automatically track the input baud rate
Protocol independent

Benefits

AIS compatible
Protects connected devices
Simple installation

Specifications:

Power Supply
Input Supply Voltage	10 to 35V DC
Input Supply Current (NBF-3 only)	100mA max @ 12V DC (all outputs @ full drive into 100? loads)
Input Supply Connector	Pluggable 2 way screw terminal, 3.5mm pitch
Input Protection (NBF-3 only)	Continuous reverse polarity and ESD protection
Power Indicator	LED, blue (lit constantly indicates correct operation when input supply connected)
Listener Power Output Voltage	10 to 35V DC derived directly from the input supply voltage
Listener Power Output Current	500mA max @
Listener Power Output Connector	Pluggable 2 way screw terminal, 3.5mm pitch
NMEA 0183 Port – Listener and Talkers
Number of Listener / Input Ports	One isolated NMEA 0183 Listener
Number of Talker / Output Ports	Six isolated NMEA 0183 Talkers
Compatibility	Fully NMEA 0183, RS422 and RS232 compatible. RS485 Listener compatible
Galvanic Isolation	2500V input to ground 1500V output to ground using ISO-Drive
Speed / Baud Rate	4800 to 115200 bps
Talker Output Voltage Drive	>= 2.1V (differential) into 100?
Talker Output Current Drive	20mA max.
Talker Output Protection	Short circuit and ESD
Listener Input Voltage Tolerance	-15V to +15V continuous, -35V to +35V short term (
Listener Input Protection	Current limited, overdrive protection to 40V DC and ESD protection
Listener Data Indicator	LED, green (flashes at data rate)
Connectors	Pluggable 2-way screw terminals, 3.5mm pitch
Approvals and Certifications
EMC	EN 60945 (sections 9 and 10)
Environmental Protection	IP66
Operating Temperature	-20 degreesC to +70 degreesC
Storage Temperature	-40 degreesC to +85 degreesC
Mechanical
Housing Material	Polycarbonate
Protective Lid Material	Polycarbonate
Sealing Materials	Expanded silicone foam gasket, closed cell polyurethane splash guard and ePTFE waterproof vent
Dimensions	127mm (L) x 106mm (W) x 48mm (H)
Weight	210g
Mounting	4 x 3.5mm lugs to allow panel mount with self tapping screws (included), optional DIN rail mount available on request.
