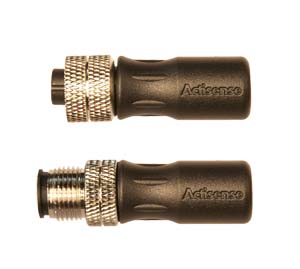

Actisense Micro Terminator

Actisense Micro Terminators are for use at each
end of an NMEA 2000 backbone to ensure proper operation and signal
integrity. The terminators have been designed by Actisense for
quick and easy installation. The robust design is available in both
male and female versions.

The Actisense range of NMEA 2000 connectors and cables has been
designed using our specialist interconnect and NMEA knowledge. All
Actisense products are NMEA 2000 certified and fully compatible
with other NMEA 2000 connectors and devices.

All Actisense connectors follow the DeviceNet standard.

Actisense Micro Terminator Specifications:

Parameter	Description
Electrical
Rated Current	4 A
Rated Voltage	25 V (AC/DC)
Mechanical
Male Contact	Brass, gold plated
Female Contact	Phosphor bronze, gold plated
Contact Carrier	PBT, black
Contact Polarisation	Standard M12 – ‘A’ – Polarisation
Mating Thread	M12
Screw Cap	Brass, nickel plated
Female O-Ring Seal	Rubber, black
Housing	PVC, black
Weight	Male Version: 13g Female Version: 12g
Approvals and Certifications
Protection	IP67 (when mated)
Operating Temperature	– 20 degreesC to + 70 degreesC
Storage Temperature	– 40 degreesC to +85 degreesC
NMEA 2000 Certified
RoHs Compliant
UL Certified (UL1277)
