Actisense Micro T Piece NMEA 2000 Connector

For use where a drop or ‘port’ is required from the NMEA 2000
backbone to connect another device

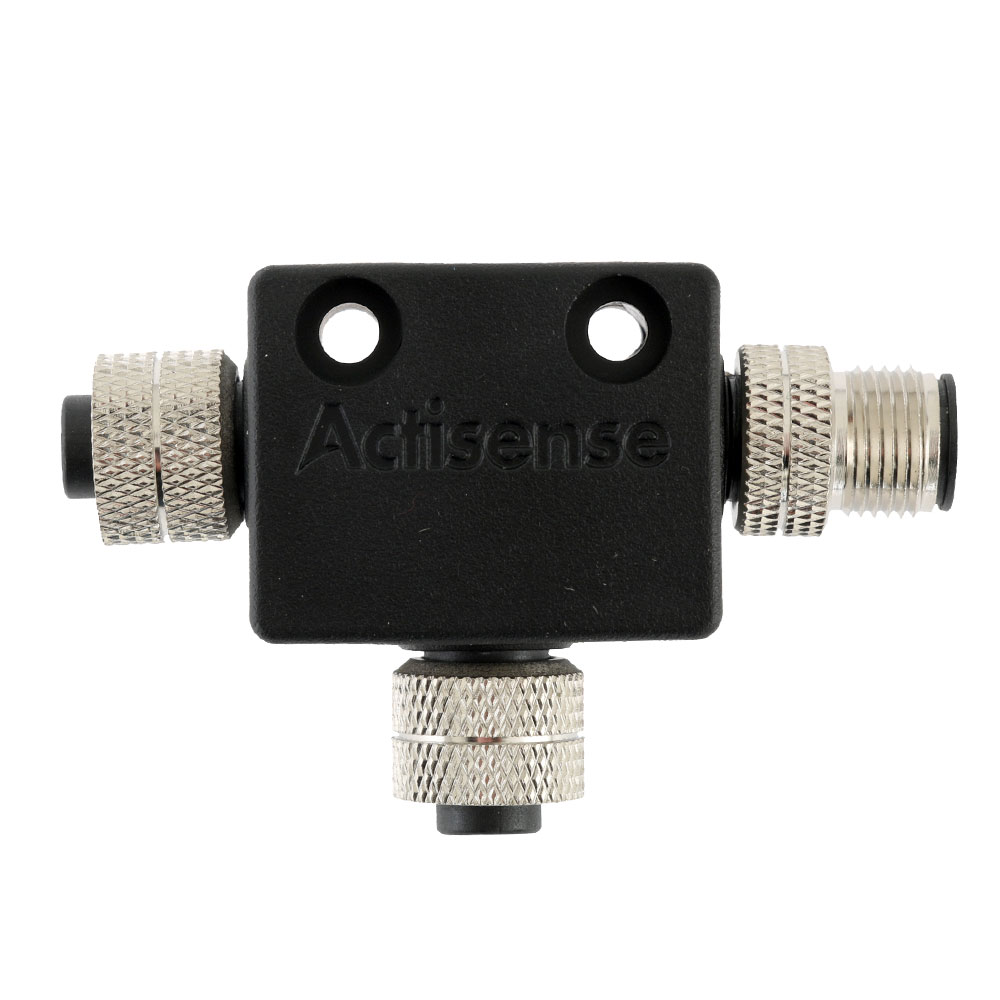

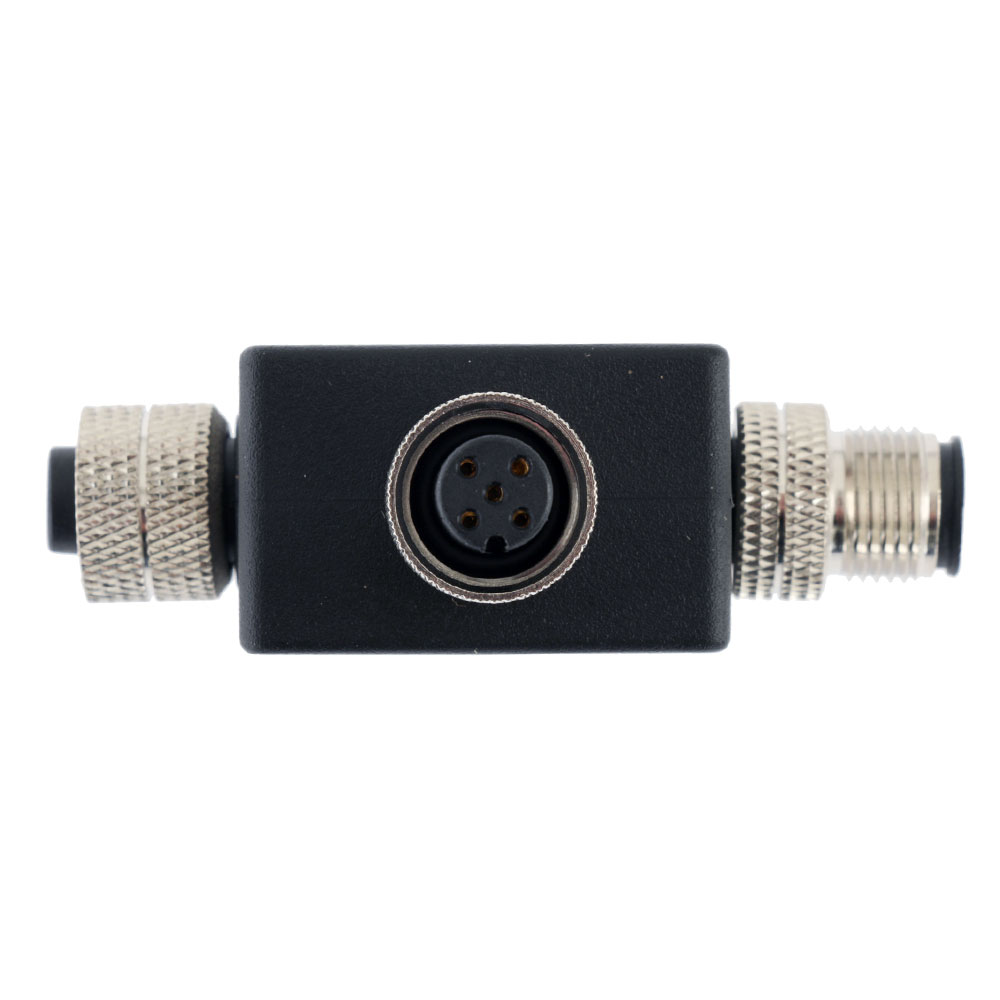

The Actisense Micro T Piece NMEA 2000 Connector is
shaped to allow easy and secure connections, even when field fit
connectors are used, making it a totally unique T piece. With two
female and one male connector, the A2K-T-MFF can be easily
connected to Actisense NMEA 2000 micro cable assemblies with UL
certified cable for unbeatable quality.

Actisense Micro T Piece NMEA 2000 Connector
Specifications:
Mechanical

• Part number: A2K-T-MFF
• Male contact: Brass, gold plated
• Female contact: Phosphor bronze, gold plated
• Contact carrier: PBT, black
• Contact polarisation: Standard M12 – “A” –
  polarisation
• Mating thread: M12
• Screw cap: Brass, nickel plated
• O-ring seal: Rubber
• Housing: PVC, black
• Weight: 47g

Electrical

• Rated current: 4A
• Rated voltage: 60V

Approvals and Certifications

• Protection: IP67 (when mated)
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• NMEA 2000 certified
• RoHS compliant

Actisense Micro T Piece NMEA 2000 Connector Data Sheet
