Actisense Micro Power T
Original price was: $129.00.$92.99Current price is: $92.99.
- Top Quality Products
- Safe Payments, the Smart Choice
- The home of quality products.
- Online assistance, always just a message away.

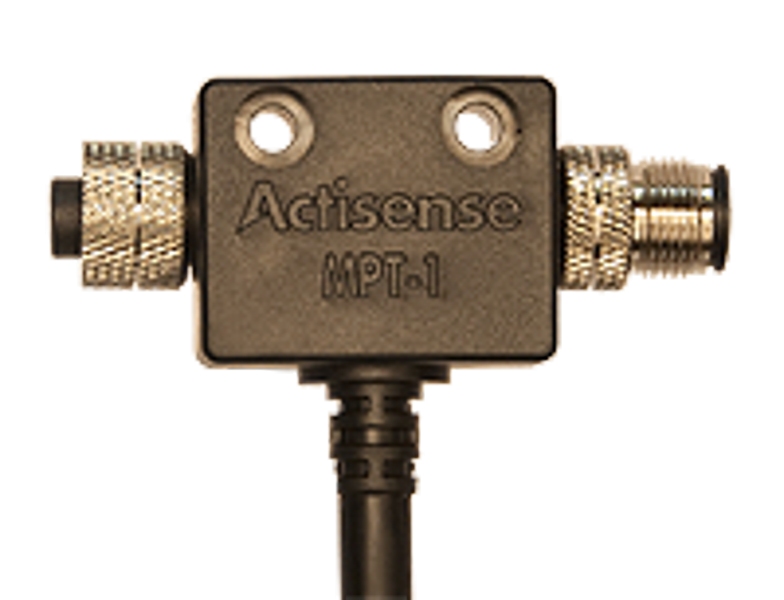

The Actisense Micro Power T can easily provide
power to the NMEA 2000 bus with micro fit connections to enable
‘plug and play’ connectivity. The Actisense designed connectors are
quality engineered and shaped to allow easy and secure connections.
The Actisense specified cable is UL certified, the three metre
cable length ensures that the A2K-MPT-1 offers complete flexibility
when installing.
The Actisense range of NMEA 2000 connectors and cables has been
designed using our specialist interconnect and NMEA knowledge. All
Actisense products are NMEA 2000 certified and fully compatible
with other NMEA 2000 connectors and devices.
Actisense Micro Power T Specifications:
| Parameter | Description |
|---|---|
| Electrical | |
| Rated Current | 4 A (each feed) |
| Rated Voltage | 25 V (AC/DC) |
| Mechanical | |
| Male Contact | Brass, gold plated |
| Female Contact | Phosphor bronze, gold plated |
| Contact Carrier | PBT, black |
| Contact Polarisation | Standard M12 – ‘A’ – Polarisation |
| Mating Thread | M12 |
| Screw Cap | Brass, nickel plated |
| O-Ring Seal | Rubber, black |
| Housing | PVC, black |
| Cable Jacket Material | 0.8mm Nom. PVC, black |
| Cable Outer Diameter | 6.35 mm (plus or minus) 0.254 mm |
| Cable Length | 3 M |

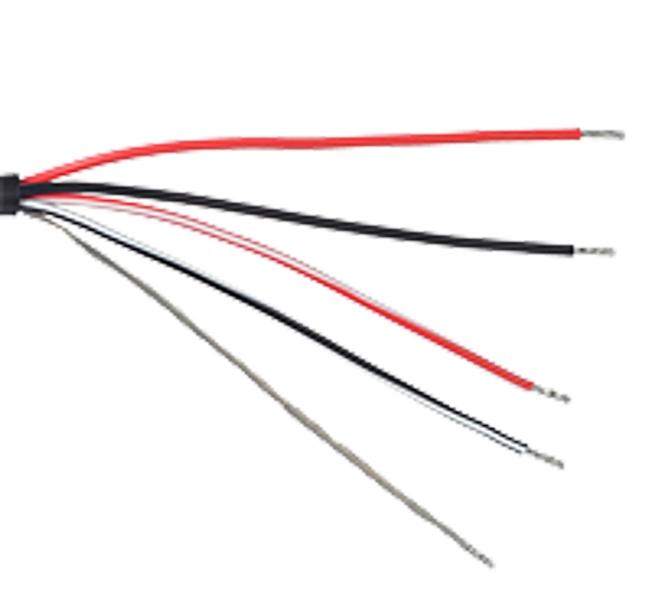

| Wire Length | 100mm (mm stripped) |
| Wire Jacket | PVC |
| Wires | 18 AWG (stripped and tinned) |
| Drain | 18 AWG (34 strand tinned copper) |
| Shield | Al-mylar |
| Weight | 290g |
| Approvals and Certifications | |
| Protection | IP67 (when mated) |
| Operating Temperature | – 20 degreesC to + 70 degreesC |
| Storage Temperature | – 40 degreesC to +85 degreesC |
| NMEA 2000 Certified | |
| RoHs Compliant | |
| UL Certified (E137250, UL1277) |
