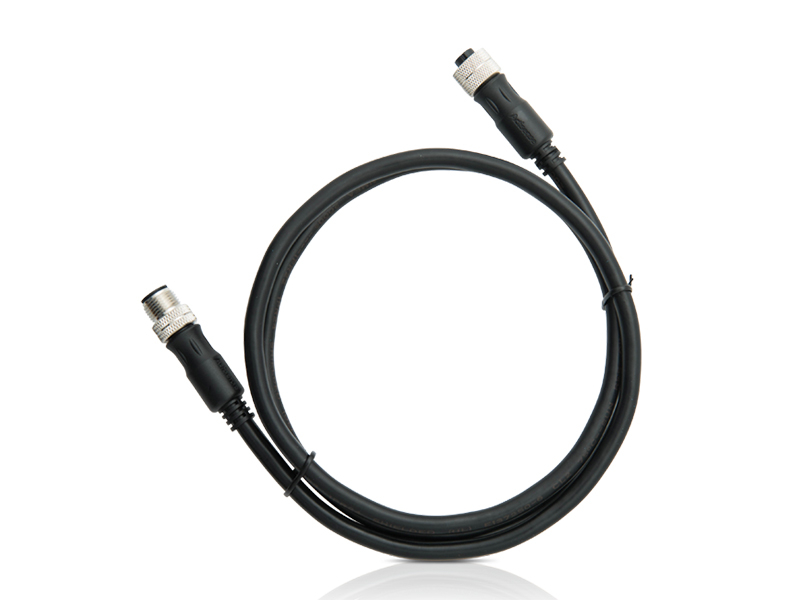

Actisense Micro Cable Assembly

Use as drop cable or to extend the length of an NMEA 2000
backbone

Actisense Micro Cable Assemblies allow quick
installation and come with a quality reassurance, as only the
Actisense UL certified cable is used. Available in various lengths,
the cable assemblies can be used as either drop cable from an NMEA
2000 backbone or to extend the length of the backbone cable. The
maximum length of a single drop cable to a connected device is 6
metres.

The Actisense range of NMEA 2000 connectors and cables has been
designed using our specialist interconnect and NMEA knowledge. All
Actisense products are NMEA 2000 certified and fully compatible
with other NMEA 2000 connectors and devices.

All Actisense connectors follow the DeviceNet standard.

Actisense Micro Cable Assembly Specifications:

Parameter	Description
Electrical
Rated Current	4 A
Rated Voltage	25 V (AC/DC)
Mechanical
Male Contact	Brass, gold plated
Female Contact	Phosphor bronze, gold plated
Contact Carrier	PBT, black
Contact Polarisation	Standard M12 – ‘A’ – Polarisation
Mating Thread	M12
Screw Cap	Brass, nickel plated
O-Ring Seal	Rubber, black
Housing	PVC, black
Power Pair	22 AWG (19 strand tinned copper)
Data Pair	24 AWG (19 strand tinned copper)
Drain	22 AWG (19 strand tinned copper)
Braid	37 AWG (trinned copper)
Jacket Material	0.8 mm Nom. PVC, black
Jacket Outer Diameter	6.85 mm plus or minus 0.254 mm
Weight	0.25m: 51g 0.5m: 67g 1m: 102g 2m: 166g 5m: 379g 6 m: 447g 10m: 733g
Approvals and Certifications
Protection	IP67 (when mated)
Operating Temperature	– 20 degreesC to + 70 degreesC
Storage Temperature	– 40 degreesC to +85 degreesC
NMEA 2000 Certified
RoHs Compliant
UL Certified (E137250, UL1277)

Actisense
Micro Cable Assembly Data Sheet
