Actisense Micro Bulk Cable Reel

UL certified, high quality cable available in 100 metre reels
to create or extend an NMEA 2000 backbone.

Actisense Micro Bulk Cable Reel holds 100 metre of
cable that can be used to create or extend an NMEA 2000 backbone of
flexible lengths to suit any installation. The cable is ideal for
use with the Actisense QNB-1 Quick Network Block and the QPD-1-GLA,
Quick Power Drop. The cable is UL certified to provide complete
peace of mind for installers.

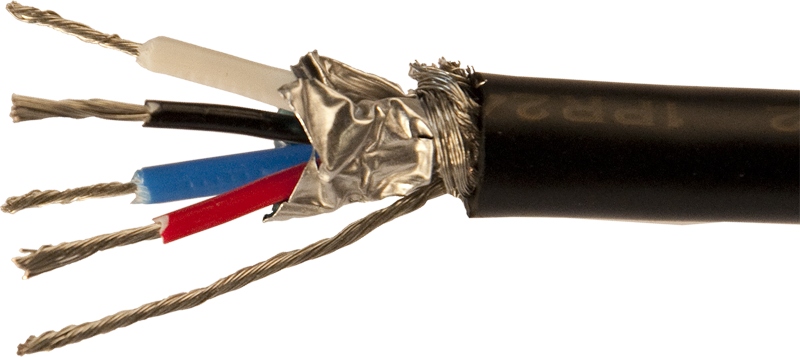

The NMEA 2000 cable includes five wires within a single waterproof
cable: power and ground wires, two signal wires and a drain wire.
The drain wire connects to the cable shield which protects the
signal, power and ground wires from external Radio Frequency
Interference (RFI) and helps reduce RFI emission from the
cable.

Actisense Micro Bulk Cable Reel Specifications:

Parameter	Description
Braid Material	37 AWG tinned copper
Braid Coverage	65% minimum
Jacket Material	0.8mm Nom. PVC, black
Jacket Outer Diameter	6.85mm plus or minus 0.254mm
Voltage Rating	300V
Overall DCR (braid + tape + drain)	3.2 Ohm/1000ft
Reel Length	100m
Reel Weight (Gross)	7.26kg
Power Pair
Conductor	22 AWG (19 strand tinned copper)
Insulation	0.3mm Nom. PVC
Diameter	1.43mm plus or minus 0.05mm
Colours	Red and Black
Shield	AL Mylar tape over pair
DC Resistance	17.5 Ohm/1000ft
Max Current	4 A
Data Pair
Conductor	24 AWG (19 strand tinned copper)
Insulation	0.65mm Nom. Foam PE
Diameter	2.0mm plus or minus 0.05mm
Colours	Blue and White
Shield	AL Mylar tape over pair
Impedence	120 Ohm plus or minus 10%
DC Resistance	28 Ohm/1000ft
Attenuation @ 125kHz	0.29dB / 100ft
Attenuation @ 500kHz	0.50dB / 100ft
Attenuation @ 1 MHz	0.70dB / 100ft
Drain
Conductor	22 AWG (19 stranded tinned copper)
DC Resistance	17.5 Ohm/ 1000ft
Approvals and Certifications
Operating Temperature	– 25 degreesC to + 75 degreesC
Storage Temperature	– 40 degreesC to + 85 degreesC
NMEA 2000 Certified
RoHS Compliant
UL Certified (E137250, UL1277)

Actisense
Micro Bulk Cable Reel Data Sheet
