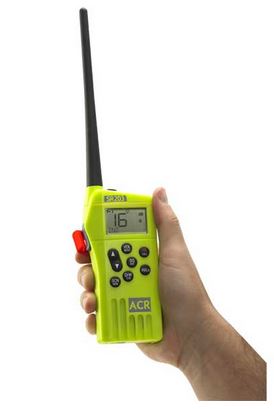

ACR SR203 GMDSS VHF Handheld Survival Radio

Built tough for all marine applications

The ACR SR203 GMDSS VHF Handheld Survival Radio
meets all the requirements of the IMO for carriage on SOLAS
vessels. Built tough for all marine applications and easy to use in
an emergency situation, the SR203 is the ideal choice for mandatory
and voluntary carriage.

The digital display and control buttons are backlit making
operation in low light environments simple. Once activated, the
SR203 is automatically tuned to Channel 16 and has a single push
Channel 16 call button to quickly return to the emergency channel.
The SR203 boasts exceptional battery life of over 16 hours (@ -4°F
(-20°C)) thanks to its highly efficient transmitter designed to
maximize battery life. For everyday use, ACR offers a lithium
polymer rechargeable battery option. The quick release rapid
charger provides the ideal solution for keeping the batteries fully
charged.

The innovative battery protection tab means the primary battery can
be permanently attached to the radio without fear of losing its
charge. The radio will always be available for use in times of
emergency without the need to remove protective labels.

Simply break off the red protective tab and the radio will be
immediately ready to turn on to channel 16. For everyday use, ACR
offers a lithium polymer rechargeable battery option. The quick
release rapid charger provides the ideal solution for keeping the
batteries fully charged.

ACR SR203 GMDSS VHF Handheld Survival Radio
Features:

• Efficent transmitter
• Rugged design
• Primary Lithium battery exceeds GMDSS requirements
• Protective battery tab
• Non-hazardous batteries
• 16 hours typical operating life
• Optional rechargeable battery kit
• Laser etched control buttons
• High contrast/backlit digital display and keypad
• 21 Channels

ACR SR203 GMDSS VHF Handheld Survival Radio
Specifications:
Transmitter

• Output Power (High): 2.5Watts
• Output Power (Low) 1Watt
• Modulation FM (G3E)
• Modulation Designator 16K0G3EJN
• Deviation ±3kHz(Nom), <�±5kHz(peak)
• Adjacent channel power <-70dBc
• Spurious emissions <0.25μW

Receiver

• Sensitivity (20dB SINAD) ≤-117dBm
• Audio Output Power 0.4Watt
• Adjacent Channel Rejection >70dB
• Intermodulation Rejection ≥68dB
• Spurious Response Rejection >70dB
• Blocking >90dBμV
• Spurious emissions <2nW

Environmental

• Waterproof 1metre / 30 mins
• Thermal shock 45°C
• Drop proof (hard surface) 1metre any side
• Operating Temperature Range -20°C to +55°C
• Storage Temperature Range -30°C to +70°C

What’s in the Box:
ACR SR203 GMDSS VHF Handheld Survival Radio

• Emergency use only applications (model number: 2827)
• 1 x SR203 radio
• 1 x antenna
• 1 x lanyard (attached)
• 1 x Lithium emergency battery
• 1 x mounting bracket
• 1 x user manual

ACR SR203 GMDSS VHF Handheld Survival Radio with Rechargeable
Battery (model number 2828)

• Everyday/emergency use applications
• 1 x SR203 radio
• 1 x antenna
• 1 x lanyard (attached)
• 1 x Lithium emergency battery
• 1 x Lithium Polymer rechargeable battery
• 1 x charger
• 1 x mains adaptor
• 1 x supply lead
• 1 x user manual
