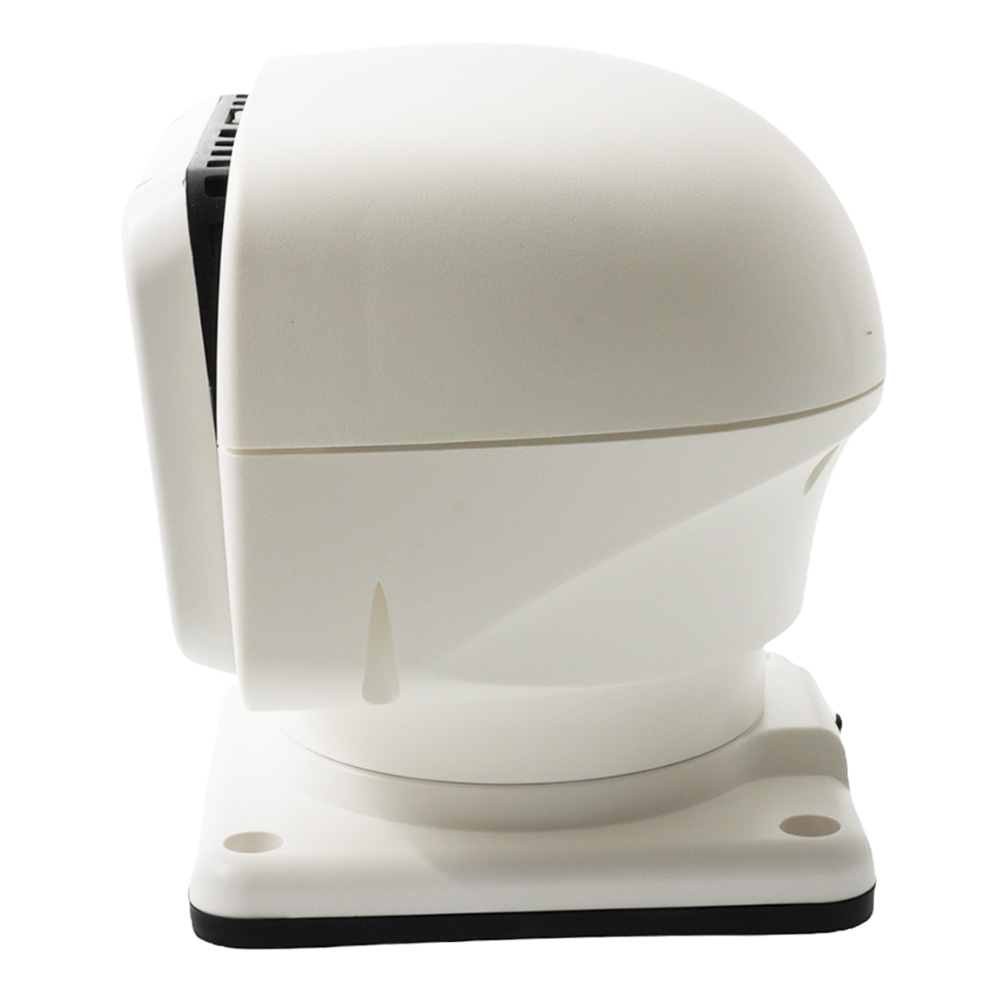

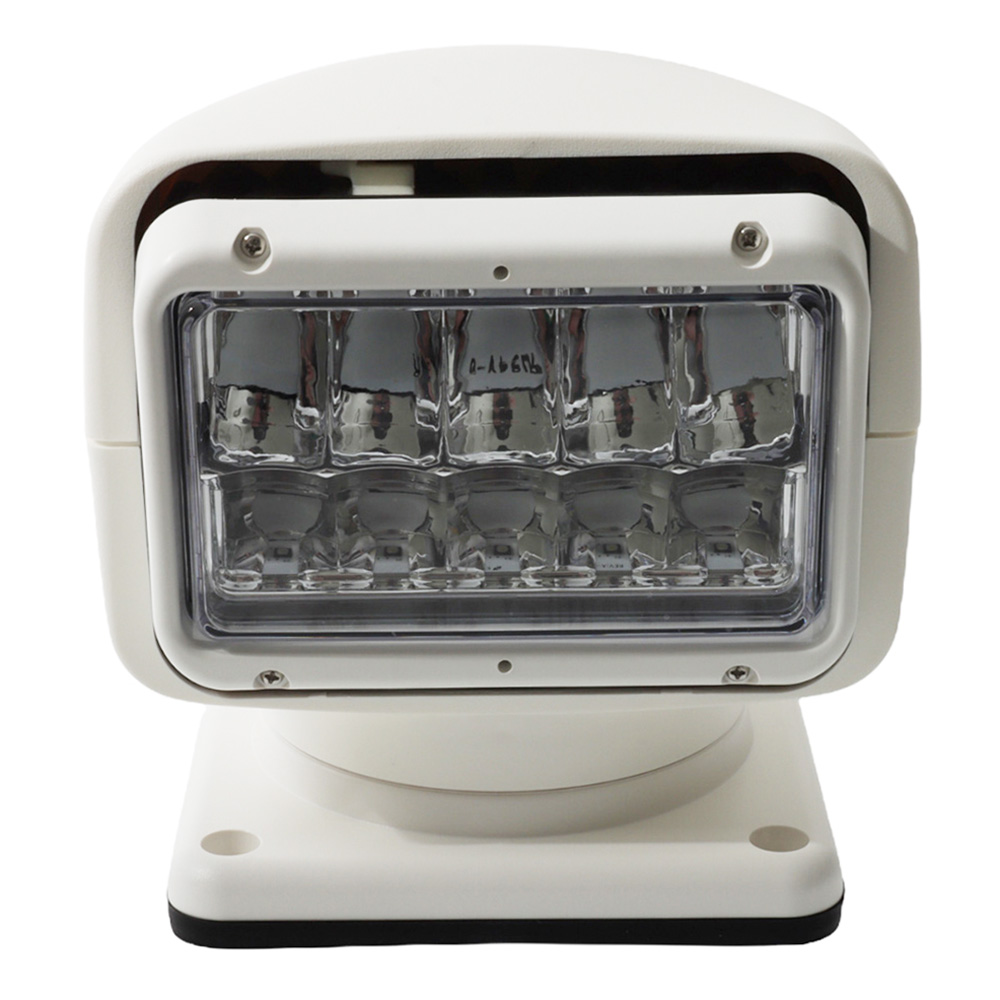

ACR RCL-95 LED Remote Control Search Light

Light the way to your destination

The ACR RCL-95 LED Remote Control Search Light was designed for performance and simplicity. With an industry-best 460,000 candelas using 10 High Flux (50W) LEDs, you have visibility over ¾ of a nautical mile to light the way to your destination. The RCL-95 LED’s sleek design makes it an attractive and cost-effective choice for small to medium-sized recreational powerboats as well as light commercial vessels.

ACR RCL-95 LED Remote Control Search Light Features:

• 10 High Flux LEDs (OSRAM)
• 460,000 Candela, Max Beam Distance 4,501 Feet (1,372 m)

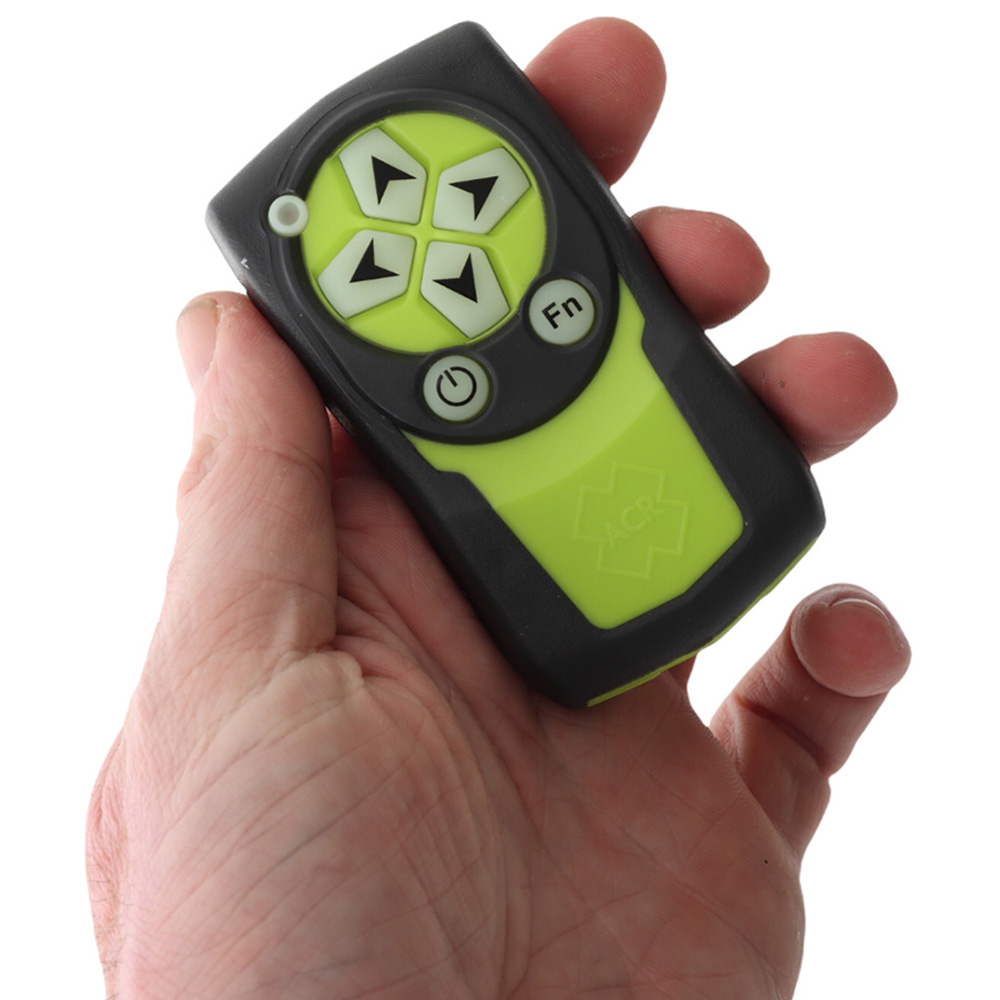

• Wireless Handheld Remote (Included)
• 360° Rotation and 135° Tilt
• Auto-home return when off
• 4 Amps (12V) to 2 Amps (24V)
• Efficient, long-life LED’s – 50,000 operating hours
• UV & Weather Resistant

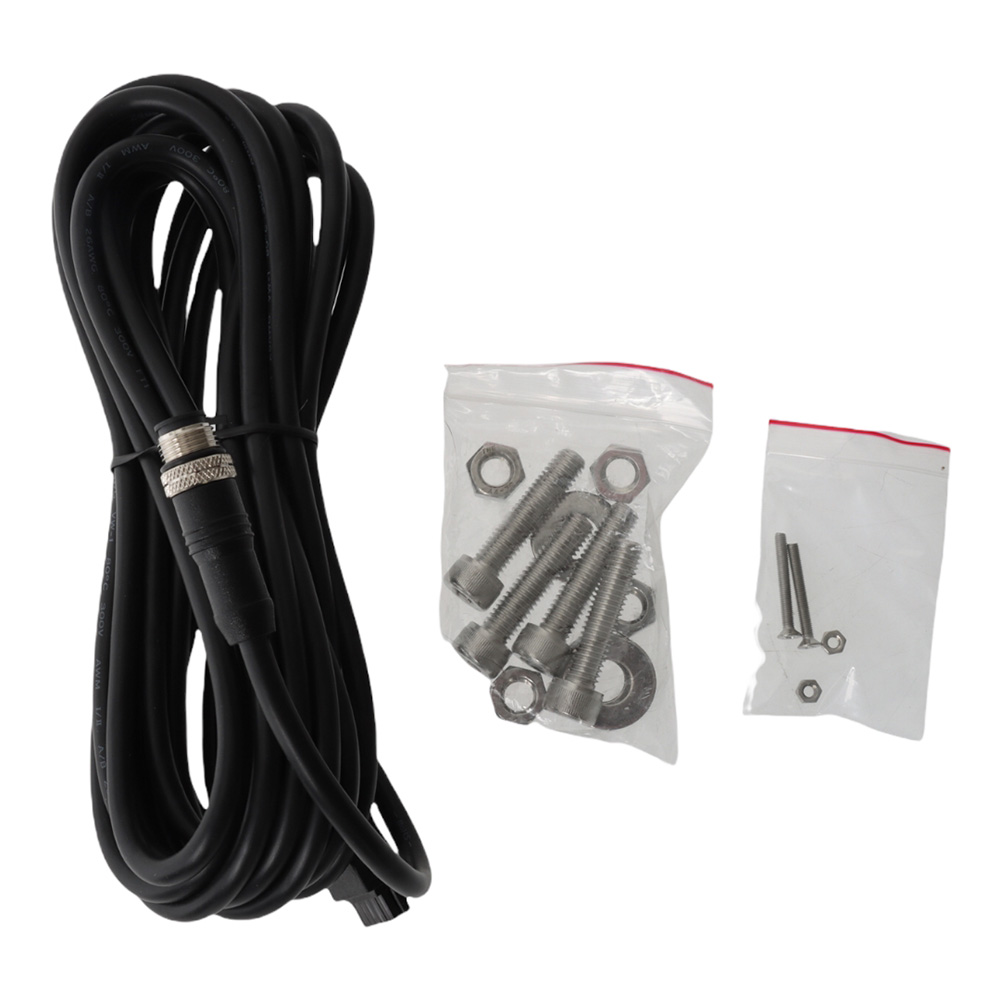

• Simple Installation (12-24V Power Connection and 5M Wired Joystick Control Cable)

ACR RCL-95 LED Remote Control Search Light Specifications:

• Size: 5.9 x 7.1 x 7.5″ (15 x 18 x 19 cm)
• Weight: 4.2 lbs (1.9 kg) (searchlight only)
• Material: Acrylonitrile Styrene Acrylate (ASA) Housing for improved weather resistance

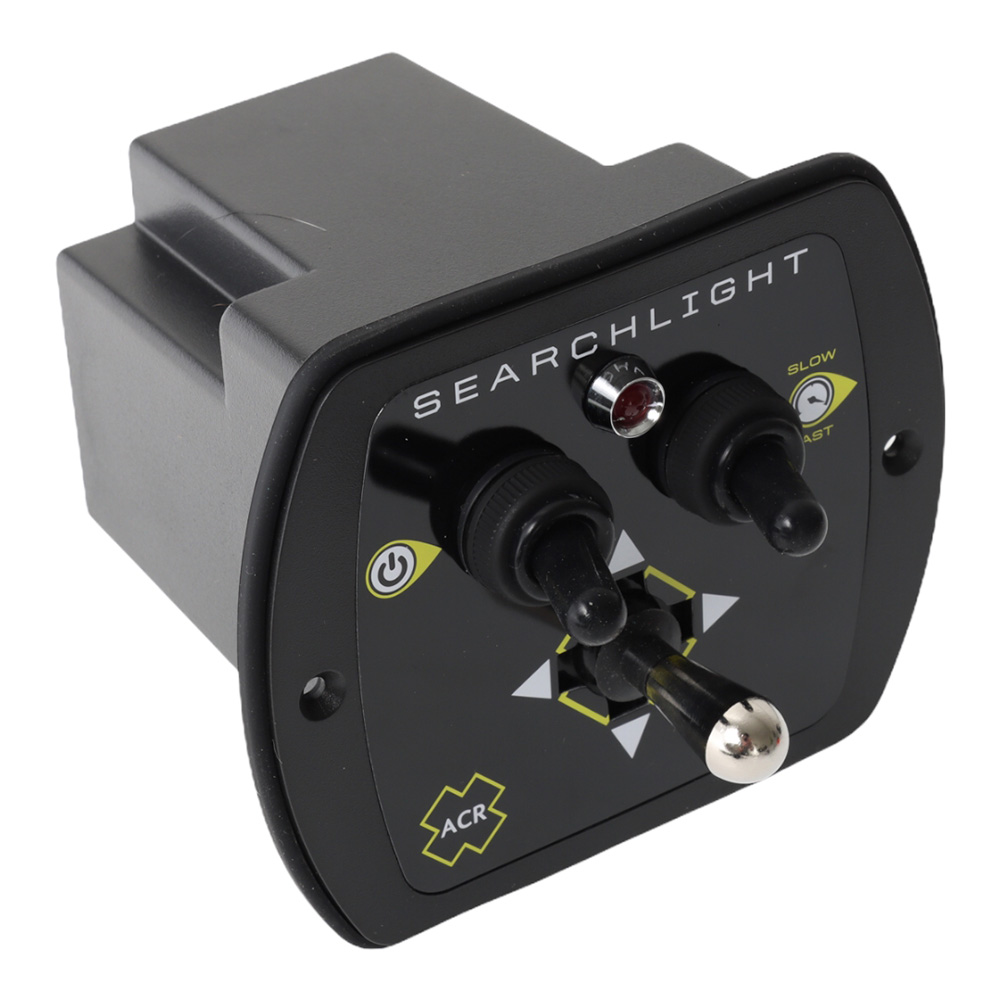

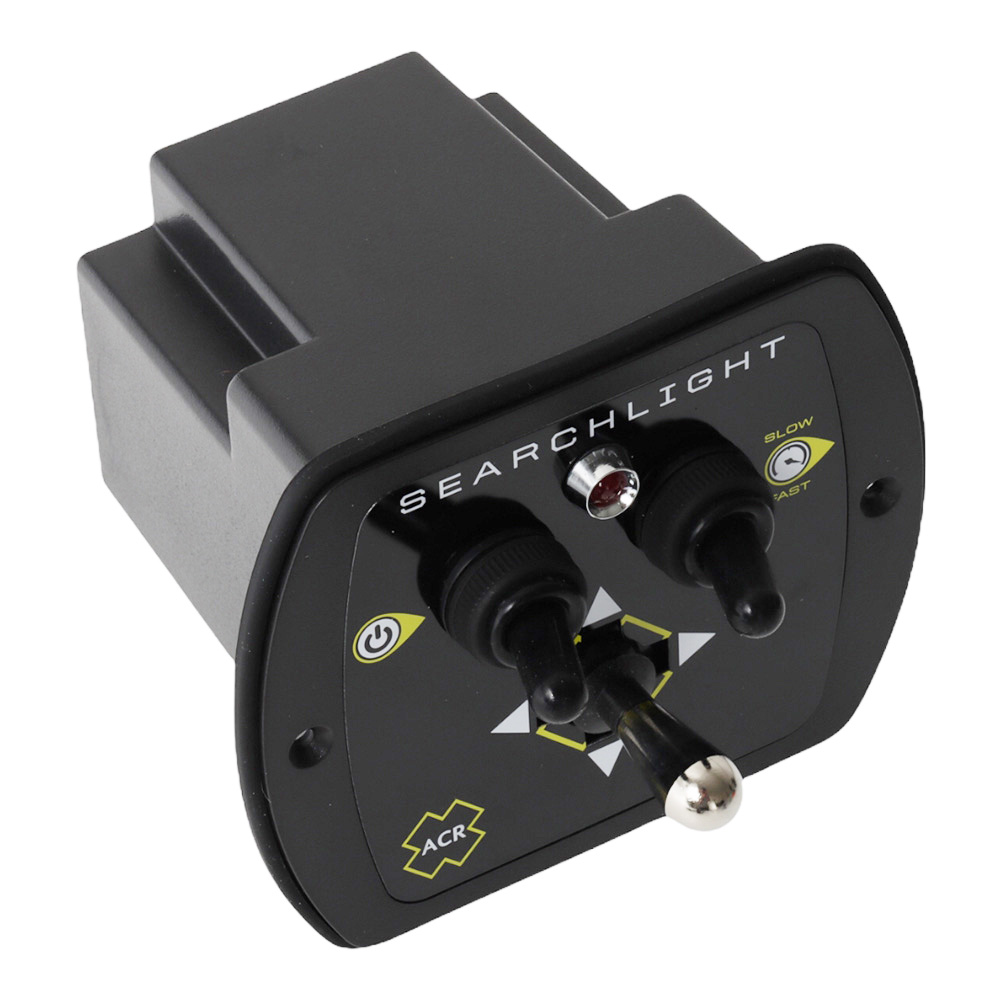

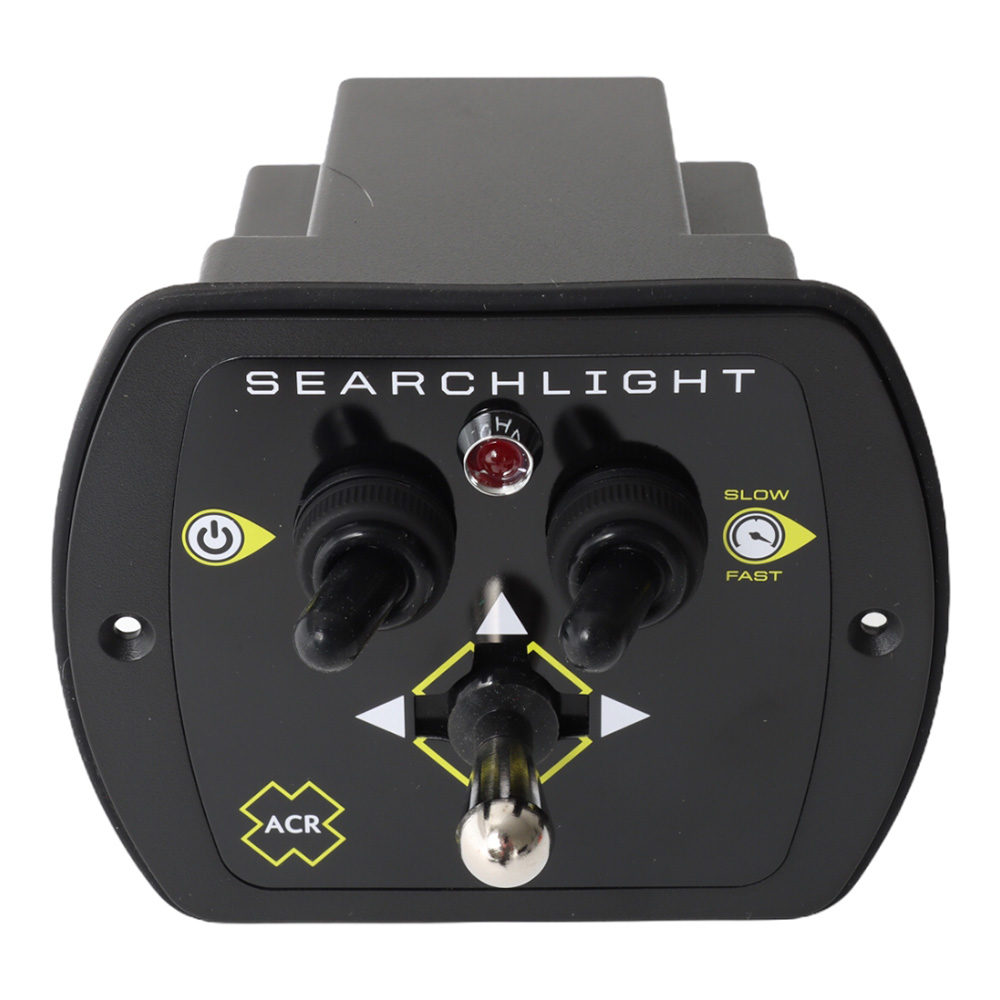

• Operation: Wireless Handheld Remote (included) / 433.92 MHz and Wired Dash Mount Joystick (included with 16.4’ (5m) cable)
• Peak Beam Candle Power: 460,000
• Beam Maximum Distance: 4,501 ft (1,372 meters)
• Beam Pattern / Angle: Spot / 8°
• Elevation Angle: 135°
• Rotation: 360° Continuous
• Rotation Speed: Fast 19° per second, slow 12° per second
• Elevation Speed: 11° per second
• Lamp: LED 50W (OSRAM x 10) / 50,000 hour life
• IP Rating: IP 56 (Housing) / IP 68 (LED Module)
• Footprint Diameter (distance between mounting holes): 4.92” x 4.92” (12.5 x 12.5 cm)
• Total Footprint (dimensions of searchlight base): 6.06” x 6.06” (15.4 x 15.4 cm)
• Power Requirements: 12 or 24 V DC
• Warranty: 2 Years
• Patents: D752,267 / 9,249,960 / 9,890,923 / 10,012,369
• Approvals: FCC / CE / R10
