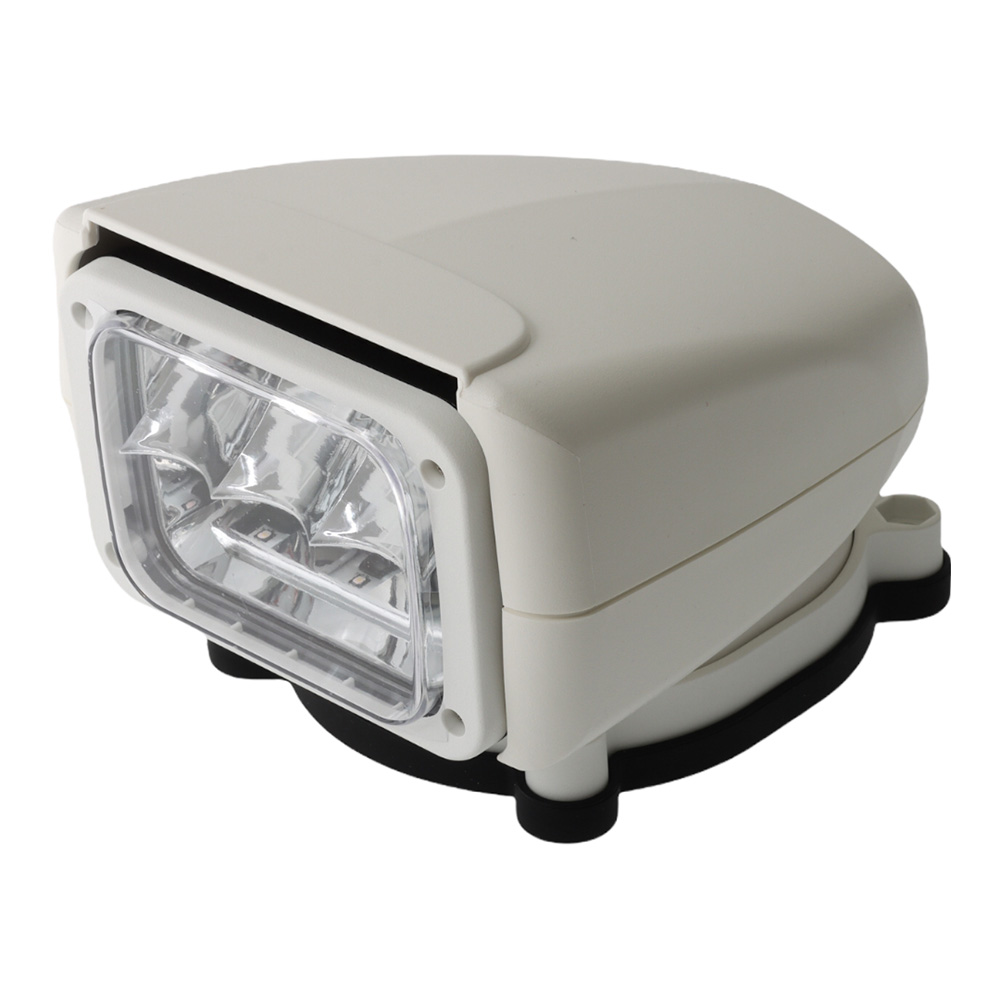

ACR RCL-85 LED Searchlight

Light the way to your destination

The ACR RCL-85 LED Searchlight sleek design makes it an attractive and cost-effective choice for small to medium-sized recreational powerboats as well as light commercial vessels. This searchlight comes with a wireless handheld remote to rotate the light 350 degrees. With an 8-degree beam angle, the light can tilt an impressive 90 degrees to make lighting draw bridges, buoys, and docks a breeze. Need to get some assistance, use the Strobe function to signal for help. The RCL-85 is weather resistant with the electronics located in the IP68 water-resistant light head instead of the base for increased protection. The ASA housing and lens are sealed against the elements for years of trouble-free operation.

ACR RCL-85 LED Searchlight Features:

• 6 High Flux LEDs (OSRAM)
• 240,000 Candela, Max Beam Distance 3,215 Feet (980 m)
• Wireless Handheld Remote (Included)
• 350° Rotation and 90° Tilt
• 2 Amps (12V) to 1.1 Amps (24V)
• Efficient, long-life LED’s – 50,000 operating hours
• UV & Weather Resistant
• Simple Installation (12-24V Power Connection Only)

ACR RCL-85 LED Searchlight Specifications:

• Size: 5.5 x 6.3 x 7.7” (14 x 16 x 19.5 cm)
• Weight: 3.1 lbs (1.34 kg) (searchlight only)
• Material: Acrylonitrile Styrene Acrylate (ASA) Housing for improved weather resistance
• Operation: Remote-controlled wireless handheld remote (included) / 433.92 MHz
• Peak Beam Candle Power: 240,000
• Beam Maximum Distance: 3,215 Feet (980 Meters)
• Beam Pattern / Angle: Spot / 8°
• Elevation Angle: 90°
• Rotation: 350°
• Rotation Speed: 18° per second
• Elevation Speed: 13° per second
• Lamp: LED 30W (OSRAM x 6) / 50,000 hour life
• IP Rating: IP 56 (Housing) / IP 68 (LED Module)
• Footprint Diameter: 5.03” x 4.09” (12.8 x 10.4 cm)
• Power Requirements: 12 or 24 V DC
• Warranty: 2 Years
• Patents: 9,212,813 & 9,890,923
