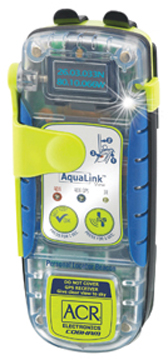

ACR PLB-350C AquaLink View GPS

Performance you can count on

The ACR PLB-350C AquaLink View GPS sports a
digital display that allows you to see all of the beacon’s
operational activities. The screen displays GPS LAT/LON, operating
instructions, usage tips, transmission bursts as well as battery
power. The digital display also makes self-testing your beacon
simple and easy to understand by visually walking you through the
self-test step by step. No more relying on listening to beeps and
looking for LEDs. And what’s more, the AquaLink View is small
enough to be easily carried in a pack or pocket or can be worn on
deck, at the helm, in quarters or on a life vest and will float if
accidentally dropped overboard.

Head offshore with confidence. With three levels of integrated
signal technology – GPS positioning, a powerful 406 MHz signal and
121.5 MHz homing capability – the AquaLink View quickly and
accurately relays your position to a worldwide network of Search
and Rescue satellites, reducing search time and increasing your
chances of survival. It’s reliable signalling technology that has
saved more than 28,000 lives since 1982.

Learn How A Rescue Works
The AquaLink View broadcasts a unique registered distress signal
that not only tells rescuers where you are, but who you are. The
onboard GPS can fix your position to within 100 meters and then
utilizes a powerful 406 MHz signal to relay your distress call to
orbiting satellites. As local Search and Rescue is deployed, a
separate homing signal and integrated LED strobe light guide
rescuers to your exact location.

ACR PLB-350C AquaLink View GPS Features:

• Floats
• Super Bright LED Strobe
• Onboard 66-Channel GPS
• Self-Test and GPS Test Features
• Typical Performance 30 Hours
• Non-Hazmat Battery
• NZ coded

ACR PLB-350C AquaLink View GPS Specifications:

• Size (LxWxH): 5.8 x 14.8 x 3.7cm
• Weight: 261g with lanyard
• Battery, Class: Class 2 (non-hazmat) Lithium batteries
• Battery replacement interval: replacement due six (6) years
  from date of manufacture of five (5) years after beacon is placed
  into service, whichever is first, or after emergency use
• Battery Operational Life: exceeds 24hrs @ -20°C
• Battery typical performance: 30hrs @-20°C
• Battery storage: -40°C to +70°C
• Material: engineered polycarbonate blend
• Colour: ACR-treuse (highly visible Yellow)
• Activation: manual
• Operation: 2 steps: deploy antenna, press ON button. Give clear
  view of sky
• Waterproof: 5m @1hr, 10m @ 10min. Factory tested @21°C, exceeds
  RTCM waterproof requirements
• Related power: 6.3W (406MHz), 50 mW +/-3dB (121.5MHz)
• Approvals: Cospas-Sarsat, FCC, R&TTE
• Lead-free: Yes

ACR PLB-350C AquaLink View GPS Operation Manual

Note: Coded for New Zealand.
