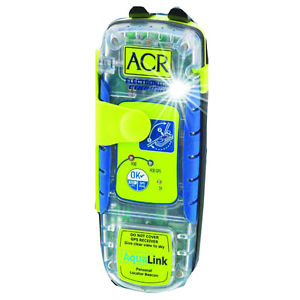

ACR AquaLink PLB-350B Handheld GPS Receiver

Performance you can count on

The ACR AquaLink PLB-350B Handheld GPS Receiver
broadcasts a unique registered distress signal that not only tells
rescuers where you are, but who you are. The onboard GPS can fix
your position to within 100 meters and then utilizes a powerful 406
MHz signal to relay your distress call to orbiting satellites. As
local Search and Rescue is deployed, a separate homing signal and
integrated LED strobe light guide rescuers to your exact
location.

Head offshore with confidence. With three levels of integrated
signal technology; GPS positioning, a powerful 406 MHz signal and
121.5 MHz homing capability; the AquaLink quickly and accurately
relays your position to a worldwide network of Search and Rescue
satellites, reducing search time and increasing your chances of
survival. It’s reliable signalling technology that has saved more
than 28,000 lives since 1982.

Learn How A Rescue Works
The AquaLink is small enough to be easily carried in a pack or
pocket or can be worn on deck, at the helm, in quarters or on a
life vest and will float if accidentally dropped overboard.
Performing a full functional self-test of the PLB’s internal
circuitry, battery voltage & power and 406 MHz transmission gives
you the peace of mind knowing your PLB will work the moment you
need it the most. ACR Exclusive: Built-in GPS acquisition test mode
allows you to test GPS functionality up to 12 times over the life
of the battery.

ACR AquaLink PLB-350B Handheld GPS Receiver
Features:

• Floats
• Super Bright LED Strobe
• Onboard 66-Channel GPS
• Self-Test and GPS Test Features
• Typical Performance 35 Hours
• Non-Hazmat Battery
• NZ coded

ACR AquaLink PLB-350B Handheld GPS Receiver
Specifications:

• Size (LxWxH): 2.3 x 5.8 x 1.45” (5.9 x 14.8 x 3.7 cm)
• Weight: 9.2 oz (261 g) with lanyard
• Battery Class: Class 2 (non-hazmat) lithium batteries
• Battery Replacement Interval: Replacement due six (6) years
  from date of manufacture or five (5) years after beacon is placed
  into service, whichever is first, or after emergency use
• Battery Operational Life: Exceeds 24 Hours @ -4°F
  (-20°C)
• Battery Typical Performance: 35 Hours @ -4°F (-20°C)
• Battery Storage: -40°F to + 158°F (-40°C to +70°C)
• Material: Engineered polycarbonate blend
• Colour: ACR-treuse (high visibility yellow)
• Activation: Manual
• Operation: 2 steps: deploy antenna, press ON button. Give clear
  view of sky
• Waterproof: 16.40 ft (5 m) @ 1 hr., 33 ft (10 m) @ 10 min.
  Factory tested @ 70°F, exceeds RTCM waterproof
  requirements
• Radiated Power: 6.3W (406 MHz), 50 mW +/-3dB (121.5
  MHz)
• Approvals: Cospas-Sarsat, FCC, R&TTE, New Zealand
• Lead Free: Yes

ACR AquaLink PLB-350B Handheld GPS Receiver Operation
Manual

Note: Coded for New Zealand.
