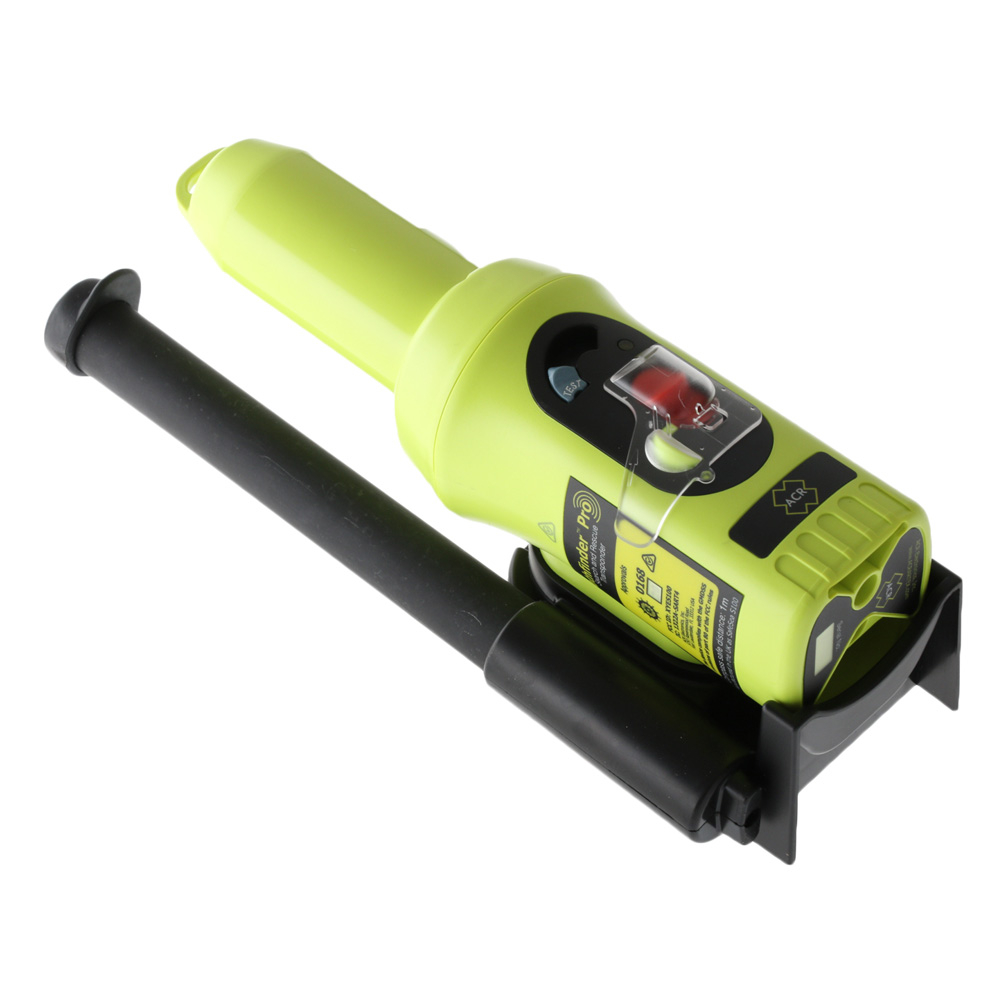

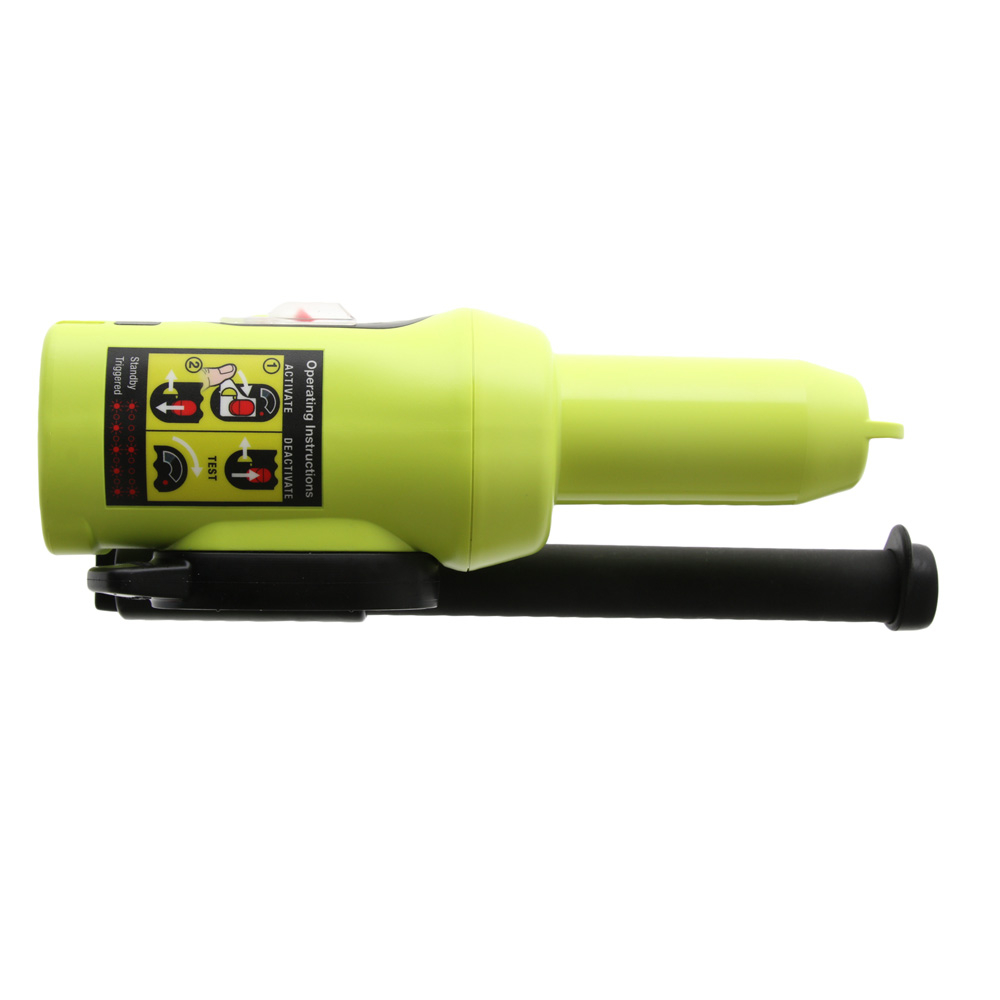

ACR 2914 Pathfinder PRO Search And Rescue Transponder

Drastically increase your probability of survival at sea with
the Pathfinder PRO Search and Rescue Transponder.

The Pathfinder Pro is a fully approved Search and Rescue
Transponder (SART) that complies with IMO SOLAS regulations. When
interrogated by radar, the Pathfinder Pro returns 12 intense blips
back to the vessels radar screen, greatly enhancing search and
rescue efforts. The superior lithium battery provides over 96 hours
of operating life in standby mode (waiting to be interrogated by
radar) and 12 hours of active operating life (while interrogated by
radar).

The Pathfinder Pro comes with a sleek wall mount to keep this
compact SART out of the way, yet readily accessible in an
emergency. The attached telescopic pole conveniently connects to
the bottom of the SART and provides for maximum height and
visibility out of a life craft. The SART can also be suspended
inside the craft for hands free usage.

A Search and Rescue Transponder (SART) is mandatory for all
commercial vessels that must conform to GMDSS, and any vessel
carrying more than one life raft.

Carriage Requirements:

• Any IMO SOLAS vessel on international voyages are required to
  carry a SART
• 300-500 Gross Register Tonnage (GRT) must carry a minimum of 1
  SART
• Over 500 Gross Register Tonnage (GRT) must carry a minimum of 2
  SARTs
• 1 SART for every four life rafts on Ro-Ro passenger
  vessels

Features:

• Enhances radar returns with 12 intense blips, whereby the first
  blip represents the SARTs location
• Unit transmits through the 9.2-9.5 GHz band marine radar when
  interrogated by radar
• Vessel mounting bracket and collapsible pole
• Compact 8.94 x 2.56 Inches (227 mm x 65 mm) unit easily packs
  into life raft
• Waterproof to 10 meters (33 ft)
• Non-Hazmat Lithium battery (5-year replacement life) operates
  for over 96 hours in standby mode plus an additional 12 operational
  hours
• Worldwide certifications; complies with IMO, MED, FCC and IEC
  standards
• Operational Life – 96 hours in stand-by mode; in excess of 12
  hours in operational mode
• Application: mandatory requirement for all vessels governed by
  GMDSS; any yacht or vessel carrying more than one life raft to
  accommodate crew and passengers

Specifications:

Battery	Lithium/Iron Disulfide (Li/FeS2) — Non Hazardous
Operation	Break protective cover, slide and hold yellow switch to the left, slide the red switch into the down position.
Deployment	Manual
Frequency	9.2-9.5GHz
Waterproof	>10 meters @ +20 degrees C
Output power	>26 dBm eirp
Operating temperature range	-20 degrees C to +55 degrees C
Storage temperature range	-30 degrees C to +70 degrees C
Standby operating life	>96 Hours
Active operating life	>12 Hours
Certification	FCC, MED, Industry Canada, and Chinese CCS type approval certificate. Tested to IMO and IEC Standards
Dimensions	8.94 in x 2.56 in x 2.36 in (227 x 65 x 60 mm) –

What’s in the Box:

• 2914 Sart
• Vessel mounting bracket
