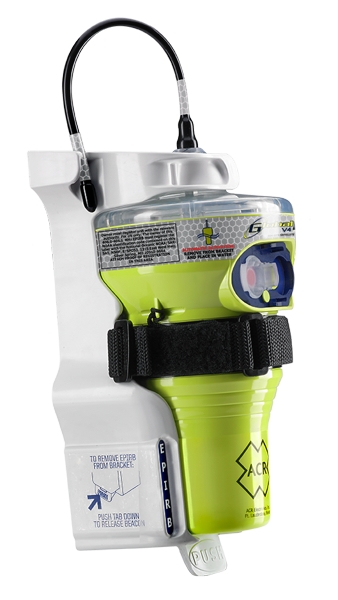

ACR 2831 GlobalFIX V4 Cat II Class 2 EPIRB

Category II beacons are designed to be manually deployed from
the bracket and then activated manually or placed in the water to
activate automatically.

Drastically increase your probability of survival at sea with
the multiple built-in redundancies of the GlobalFIX V4 marine
distress EPIRB. Upon activation, the GlobalFIX V4’s robust internal
GPS accurately fixes your exact location. Your coordinates are then
broadcast via a powerful 406 MHz distress signal to Search and
Rescue forces worldwide. In the absence of GPS data, orbiting
Cospas-Sarsat satellites can accurately triangulate your position
using the 406 MHz signal alone. A 121.5 MHz homing signal further
guides searchers to your exact position.

The GlobalFIX V4 is a full-featured EPIRB loaded with
high-efficiency electronics for performance you can count on,
including an internal 66 channel GPS for faster acquisition from a
cold start. A protective keypad cover helps prevent false
activation, and the all-new, user-replaceable battery pack has a
10-year replacement interval – reducing the overall ownership cost
and making replacement a breeze.

The GlobalFIX V4 has two functional self-tests to monitor the
beacon’s transmission, power and battery performance and GPS
acquisition.

Features:

• Highly visible LED strobe – Energy efficient
• Internal 66 channel GPS – Faster acquisition from a cold
  start
• High efficiency electronics – Performance you can count on
• User replaceable battery – 10 year battery life
• Professional grade design – Engineered, tested and built for
  years of use in harsh environments
• Simple manual activation – Keypad with protective cover to
  prevent false alarms

Specifications:

Dimensions	8.13 (H) X 4.28? (W) (20.7 X 10.9 cm)
GPS	Internal GPS (66 Channel)
Battery	Class 2 (non-hazmat) lithium battery (user replaceable)
Battery replacement	10 year user replaceable battery (replace 10 years after date of manufacture or by expiry date on the beacon, whichever is first)
Material	High impact UV resistant polymer
Strobe	4 LED Array Strobe Light
Deployment	Category I – Hydrostatic release (auto) or Manual
Waterproof	33 ft (10 m) for 5 min
Output power	5 W +/- 2dB (406.037 MHz); 50 mW +/-3dB (121.5 MHz)
Operational life	48 hours minimum @ -4 degrees F (-20 degrees C)
Typical performance	+48 hrs. @ -4 degrees F (-20 degrees C); Longer in higher ambient temperature
Operating temperature	-4 degrees F to +131 degrees F (-20 degrees C to +55 degrees C ) (Class 2)
Storage temperature	-22 degrees F to + 158 degrees F (-30 degrees C to +70 degrees C)
Approvals	Cospas-Sarsat, FCC, MED (Pending), IC Acceptances: USCG Meets: GMDSS, RTCM, IEC, and IMO standards
