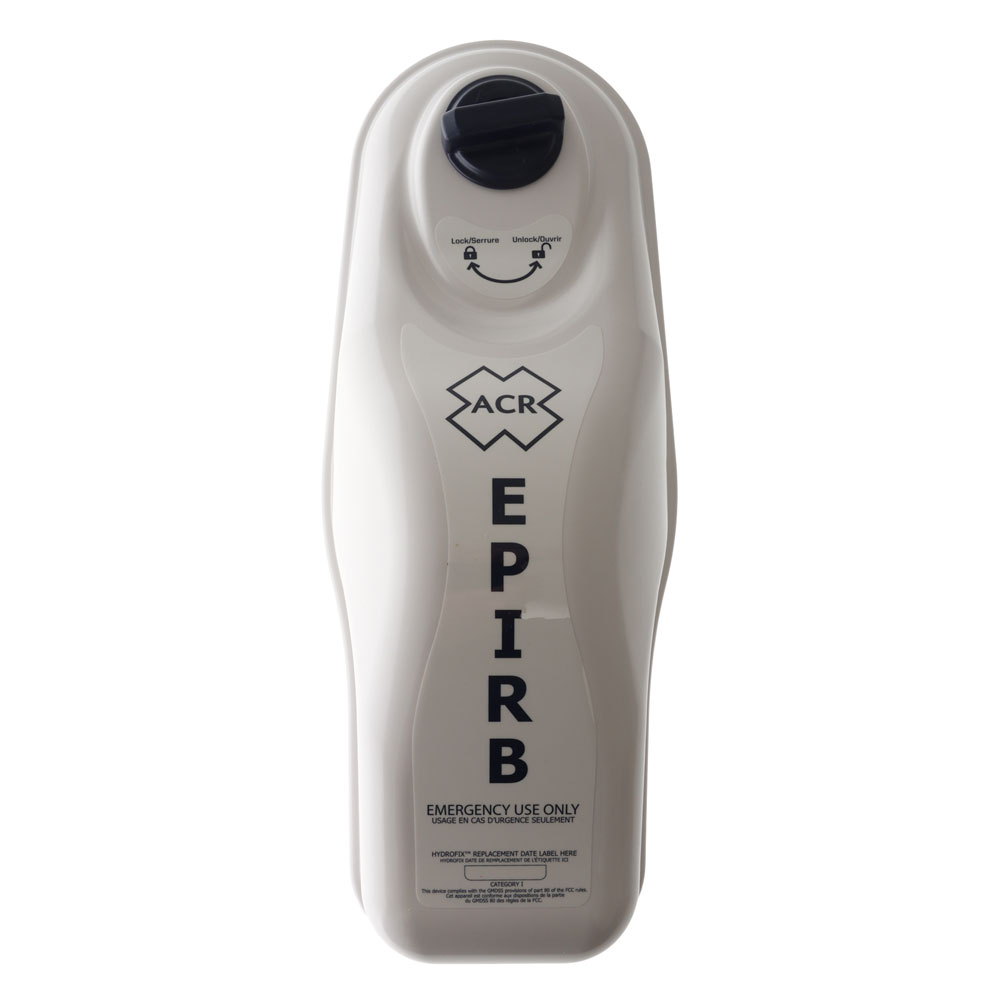

ACR 2830 GlobalFIX V4 Cat I Class 2 EPIRB

Drastically increase your probability of survival at sea

The ACR 2830 GlobalFIX V4 Cat I Class 2 EPIRB is a category I beacon designed to be automatically deployed and activated in the event of a vessel sinking. A category I beacon may also be manually activated while in or out of its bracket.

Drastically increase your probability of survival at sea with the multiple built-in redundancies of the ACR 2830 GlobalFIX V4 Cat I Class 2 EPIRB. Upon activation, the GlobalFIX V4’s robust internal GPS accurately fixes your exact location. Your coordinates are then broadcast via a powerful 406 MHz distress signal to Search and Rescue forces worldwide. In the absence of GPS data, orbiting Cospas-Sarsat satellites can accurately triangulate your position using the 406 MHz signal alone. A 121.5 MHz homing signal further guides searchers to your exact position.

The ACR 2830 GlobalFIX V4 Cat I Class 2 EPIRB is a full-featured EPIRB loaded with high-efficiency electronics for performance you can count on, including an internal 66 channel GPS for faster acquisition from a cold start. A protective keypad cover helps prevent false activation, and the all-new, user-replaceable battery pack has a 10-year replacement interval – reducing the overall ownership cost and making replacement a breeze. The GlobalFIX V4 has two functional self-tests to monitor the beacon’s transmission, power and battery performance and GPS acquisition.

ACR 2830 GlobalFIX V4 Cat I Class 2 EPIRB Features:

• Highly visible LED strobe – Energy efficient
• Internal 66 channel GPS – Faster acquisition from a cold start
• High-efficiency electronics – Performance you can count on
• User-replaceable battery – 10 year battery life
• Professional grade design – Engineered, tested and built for years of use in harsh environments
• Simple manual activation – Keypad with protective cover to prevent false alarms

ACR 2830 GlobalFIX V4 Cat I Class 2 EPIRB Specifications:

• Dimensions: 8.13 (H) X 4.28? (W) (20.7 X 10.9 cm)
• GPS: Internal GPS (66 Channel)
• Battery: Class 2 (non-hazmat) lithium battery (user replaceable)
• Battery replacement: 10 year user replaceable battery (replace 10 years after date of manufacture or by expiry date on the beacon, whichever is first)
• Material: High impact UV resistant polymer
• Strobe: 4 LED Array Strobe Light
• Deployment: Category I – Hydrostatic release (auto) or Manual
• Waterproof: 33 ft (10 m) for 5 min
• Output power: 5 W +/- 2dB (406.037 MHz); 50 mW +/-3dB (121.5 MHz)
• Operational life: 48 hours minimum @ -4 degrees F (-20 degrees C)
• Typical performance: +48 hrs. @ -4 degrees F (-20 degrees C); Longer in higher ambient temperature
• Operating temperature: -4 degrees F to +131 degrees F (-20 degrees C to +55 degrees C ) (Class 2)
• Storage temperature: -22 degrees F to + 158 degrees F (-30 degrees C to +70 degrees C)
• Approvals: Cospas-Sarsat, FCC, MED (Pending), IC Acceptances: USCG Meets: GMDSS, RTCM, IEC, and IMO standards
